Achieva V6-3300 3.3L (1992)
Front Door Panel: Service and Repair

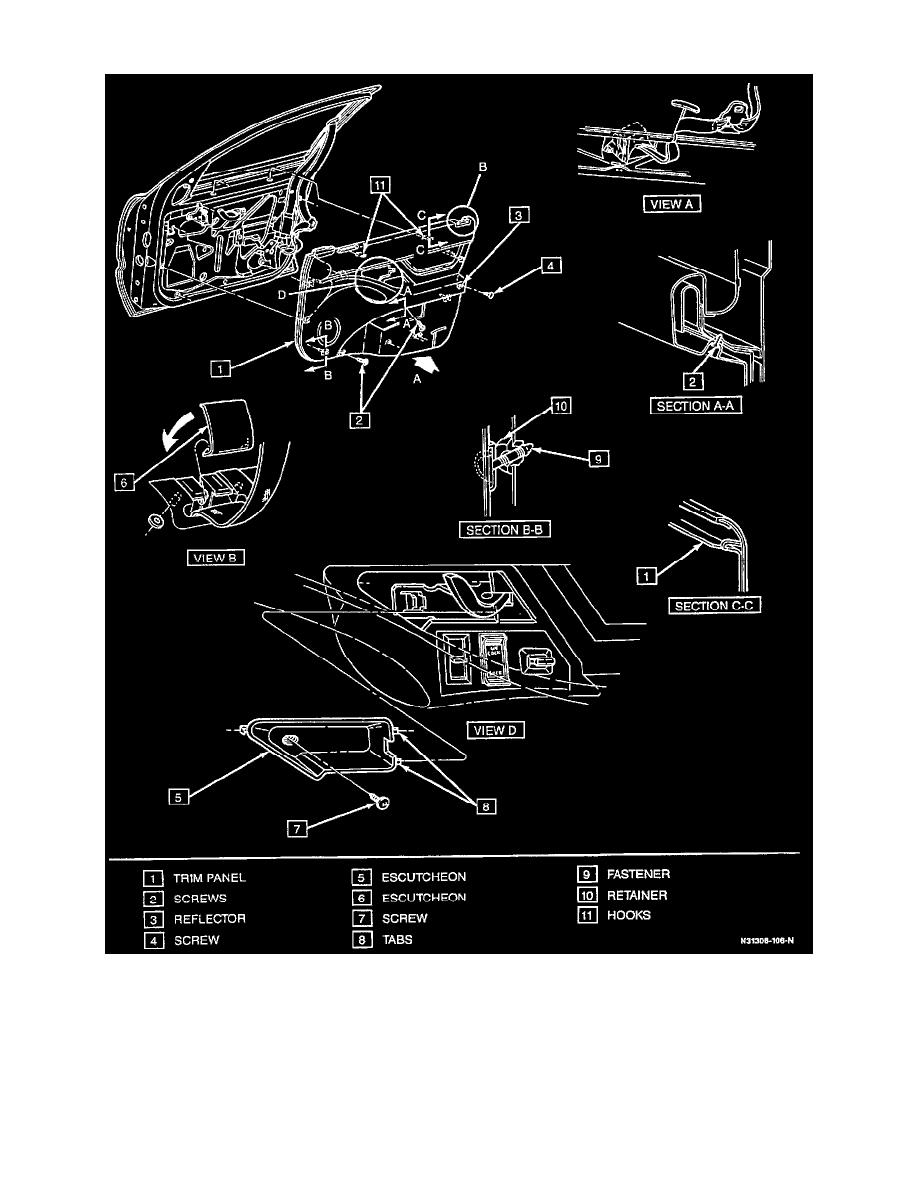

Door Trim Panel
Remove or Disconnect
1. Screws (2).
2. Reflector (3) using a thin-bladed tool to disengage from trim panel.
3. Screw (4).
4. Escutcheon (6) by prying at inboard edge with a thin-bladed tool.
5. Outside mirror escutcheon.
6. Inside door handle escutcheon (5) by removing screw (7) and pulling out at front of escutcheon and disengaging tabs (8) from trim panel.
