Achieva V6-3300 3.3L (1992)
Drive Belt Tensioner: Testing and Inspection
Accessory Drive Belt Service

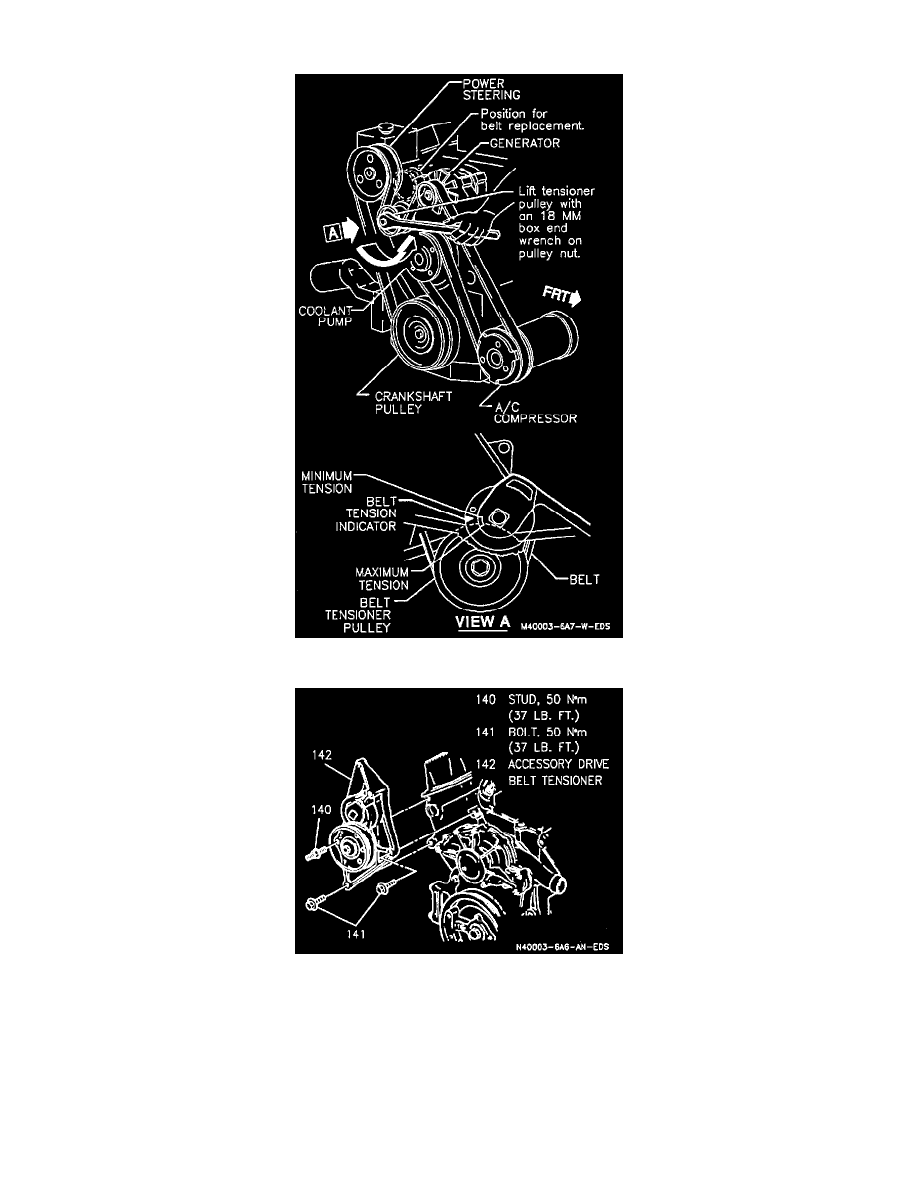

Accessory Drive Belt Tensioner
Tool Required:
BT-7825 or J 23600-B Belt Tension Gage
1. Inspect tensioner markings to see if the belt is within operating lengths. Replace belt if the belt is excessively worn or is outside of the tensioner's
operating range.
2. Run engine with no accessories on until the engine is warmed up. Shut the engine off and read belt tension with tool BT-7825 or J 23600-B placed
halfway between the generator and the A/C compressor. For non-A/C applications read tension between the power steering pump and crankshaft
