Achieva V6-3300 3.3L (1992)

Page 1
background image

Air Flow Meter/Sensor: Locations

LH Side Of Engine

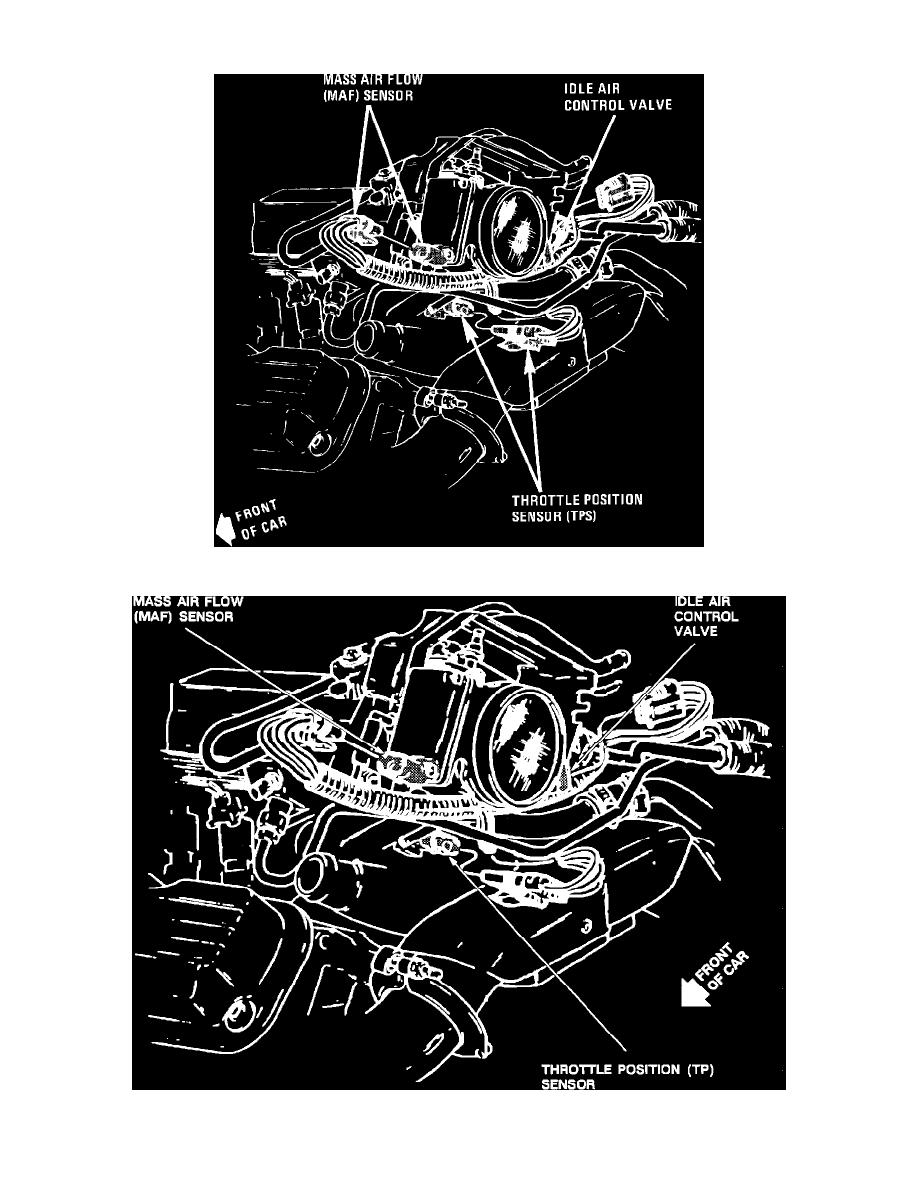

MAF/TPS/IAC Location
