Oldsmobile Workshop Service and Repair Manuals > Achieva V6-3300 3.3L (1992) > Relays and Modules | Relays and Modules - Powertrain Management | Relays and Modules - Computers and Control Systems | Engine Control Module | Component Information | Technical Service Bulletins | All Technical Service Bulletins: | 92U50 | Jun | 92 | ECM - Wiring Diagram Corrections | Page 206

91T1836E3 > < ECM - Wiring Diagram Corrections

Page 2

background image

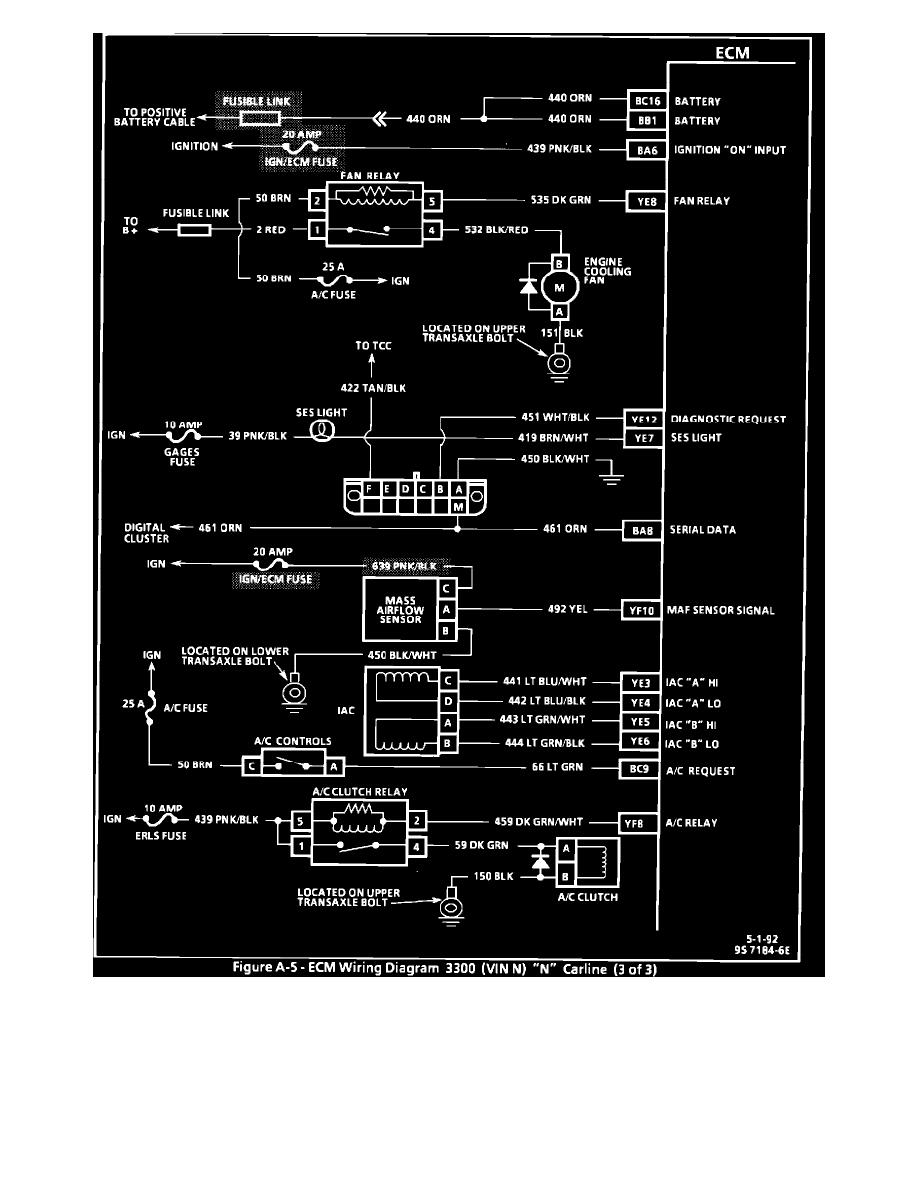

ECM Wiring Diagram 3300 (VIN N) "N" Carline (3 of 3)

Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Technical Service Bulletins / All Technical Service Bulletins:
92U50 / Jun / 92 / ECM - Wiring Diagram Corrections
Page 206

91T1836E3 > < ECM - Wiring Diagram Corrections
