Custom Cruiser RWD V8-307 5.0L (1985)

  • Powertrain Management
  • Emission Control Systems
  • Managed Air Injection Reactor (MAIR) <--> [Air Injection]
  • Air Diverter Solenoid
  • Component Information
  • Locations
  • Air Diverter Solenoid

Page 1
background image

Air Diverter Solenoid: Locations

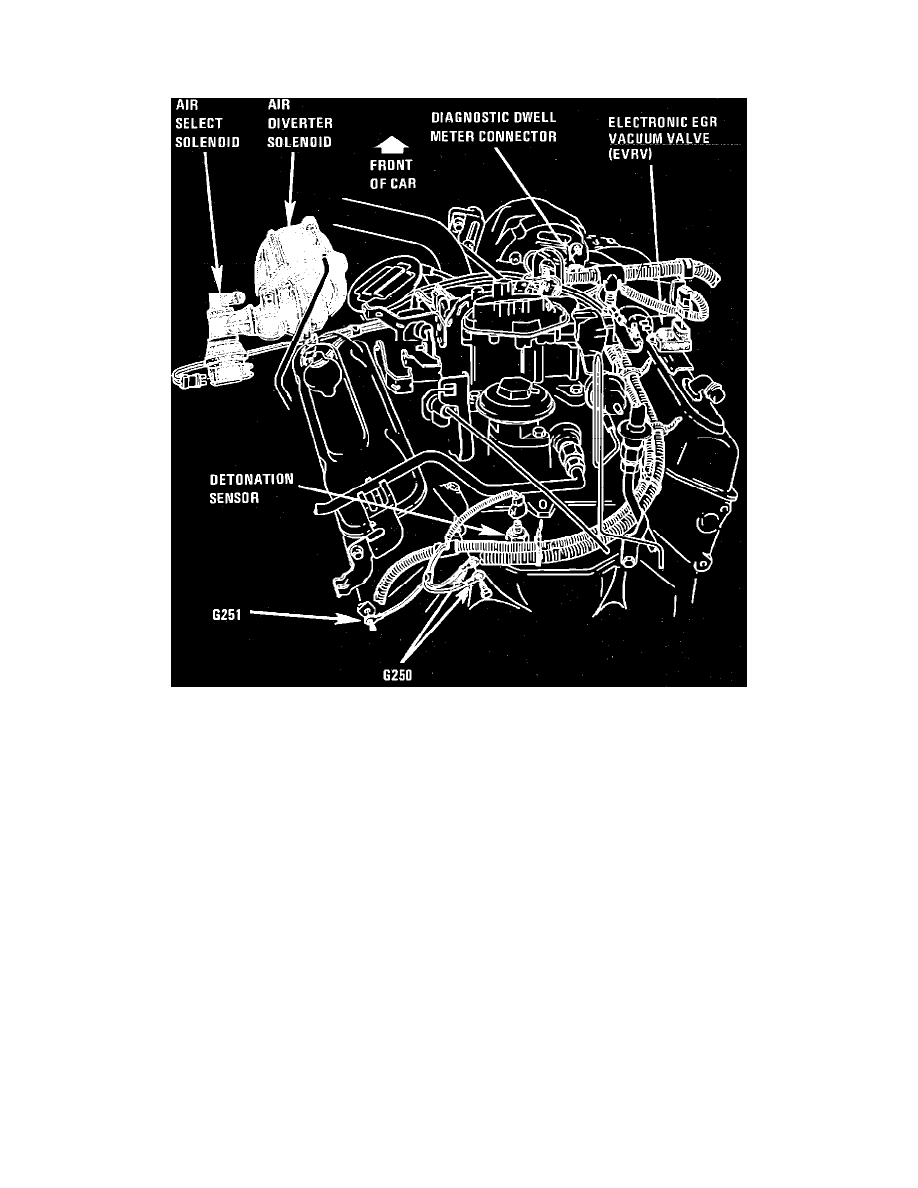

Air Diverter Solenoid

Rear Of Engine.

 Top Front LH Side Of Engine, Near Valve Cover

Applicable to:  Oldsmobile w/V6-231/3.8L Engine
