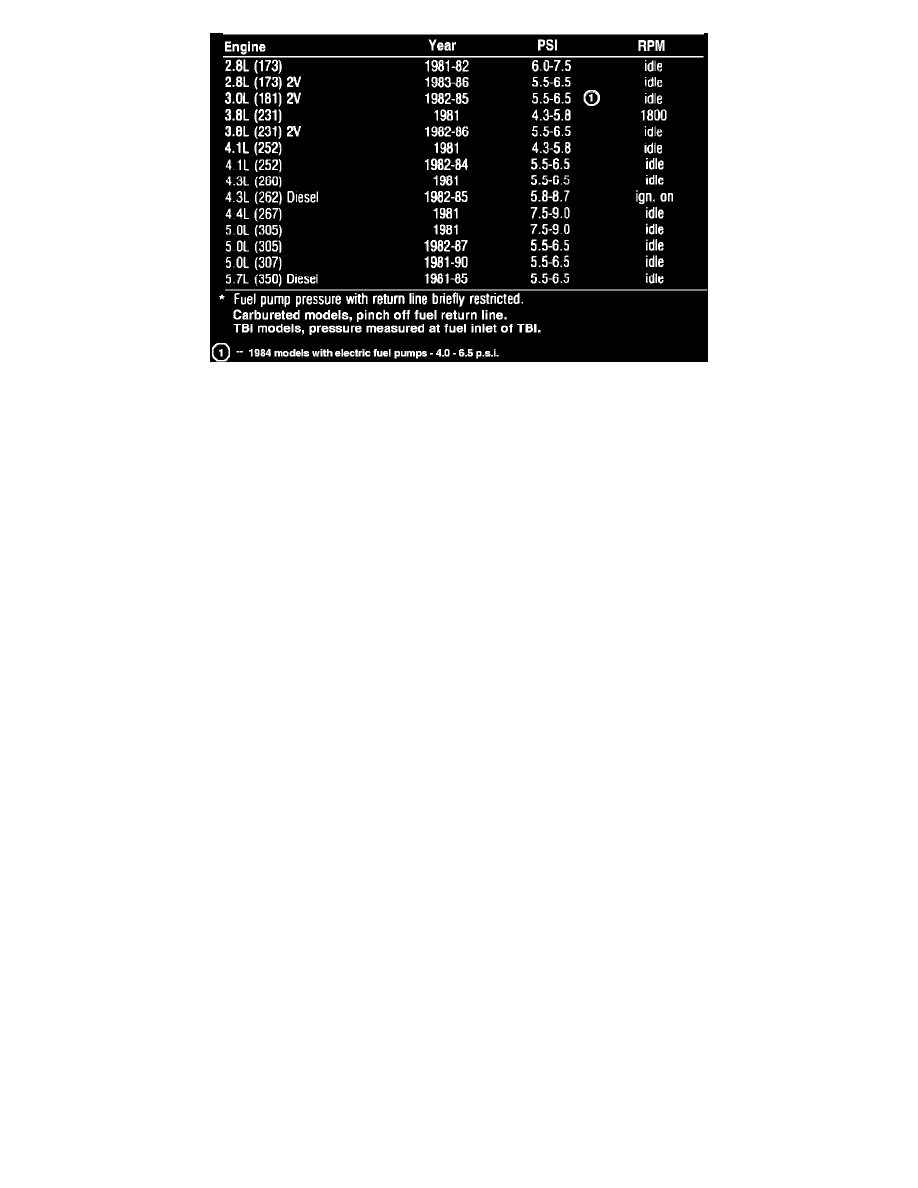

Fuel System Pressure

Powertrain Management
Fuel Delivery and Air Induction
Fuel Pressure
System Information
Specifications
