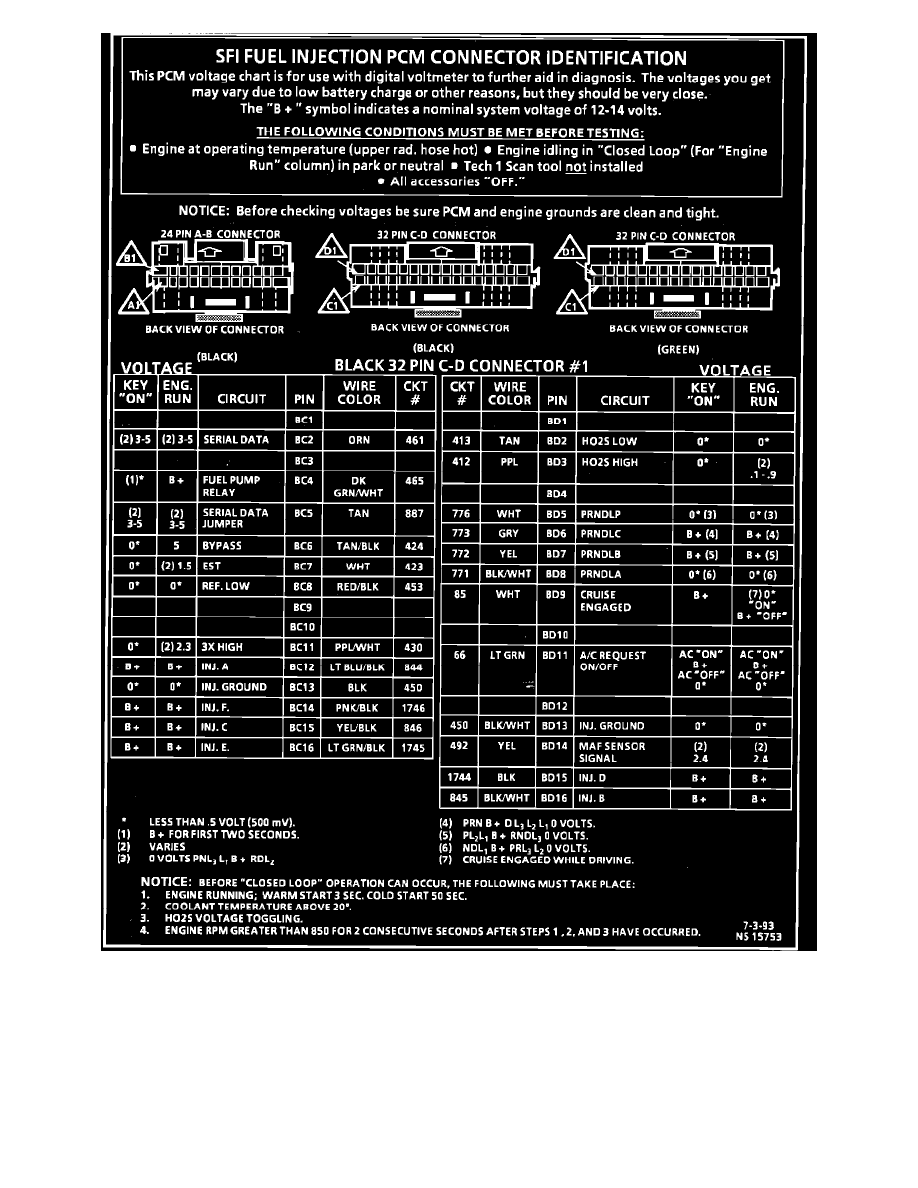

PCM Connector Pin Voltages

Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems / Engine Control Module / Component Information
Specifications
C1 (Black) 32 Pin
