Cutlass Ciera FWD V6-181 3.0L (1984)
Brake Pad: Service and Repair
Shoe & Lining Installation

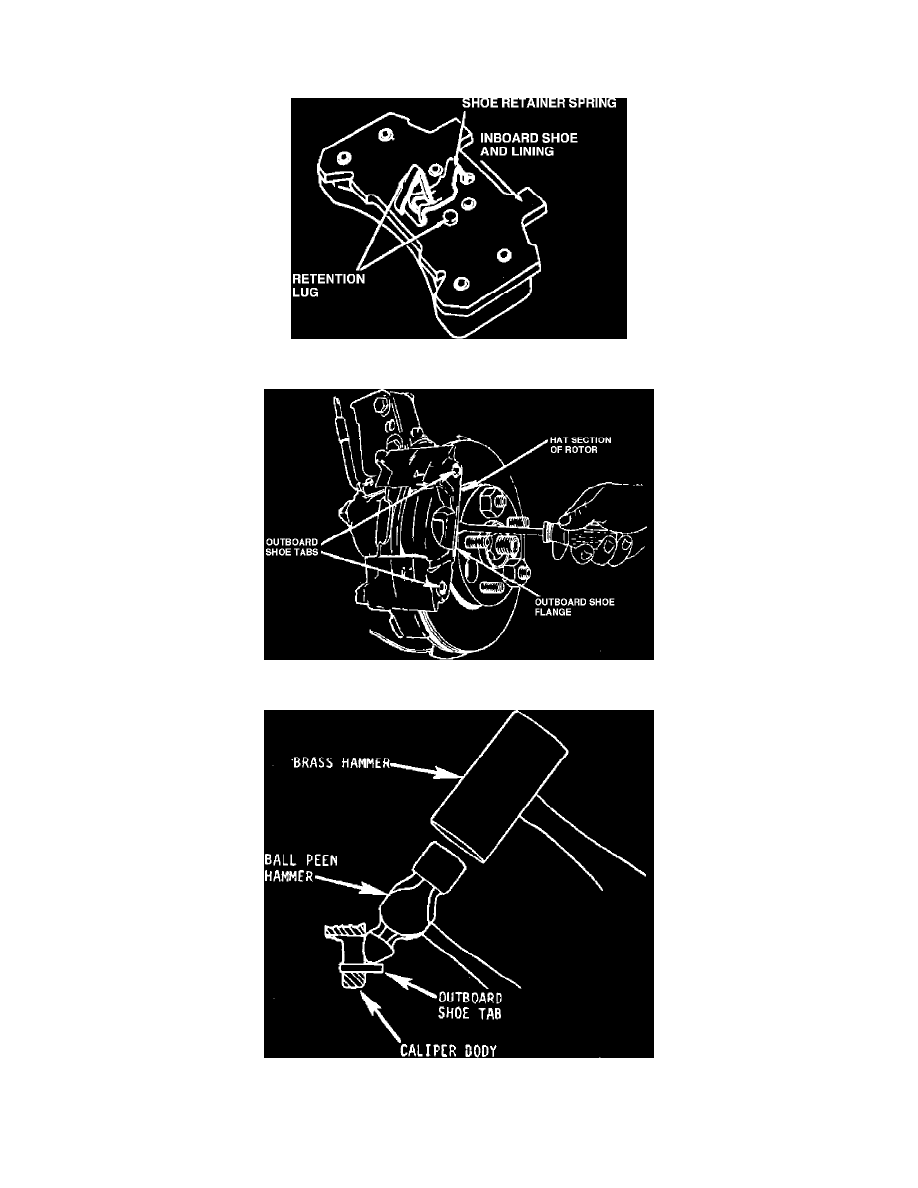

Fig. 11 Installing retainer spring on inboard shoe
Fig. 12 Screwdriver in position between outboard shoe flange & hat section of rotor
Fig. 13 Positioning hammer to clinch brake pad tabs
1.
Lubricate new bushings with suitable grease, install bushings in caliper grooves, then insert sleeves through bushings.
2.
Install retaining spring onto inboard shoe and lining assembly, Fig. 11, if equipped, then install inboard shoe into caliper housing.
