Throttle Position Sensor: Testing and Inspection

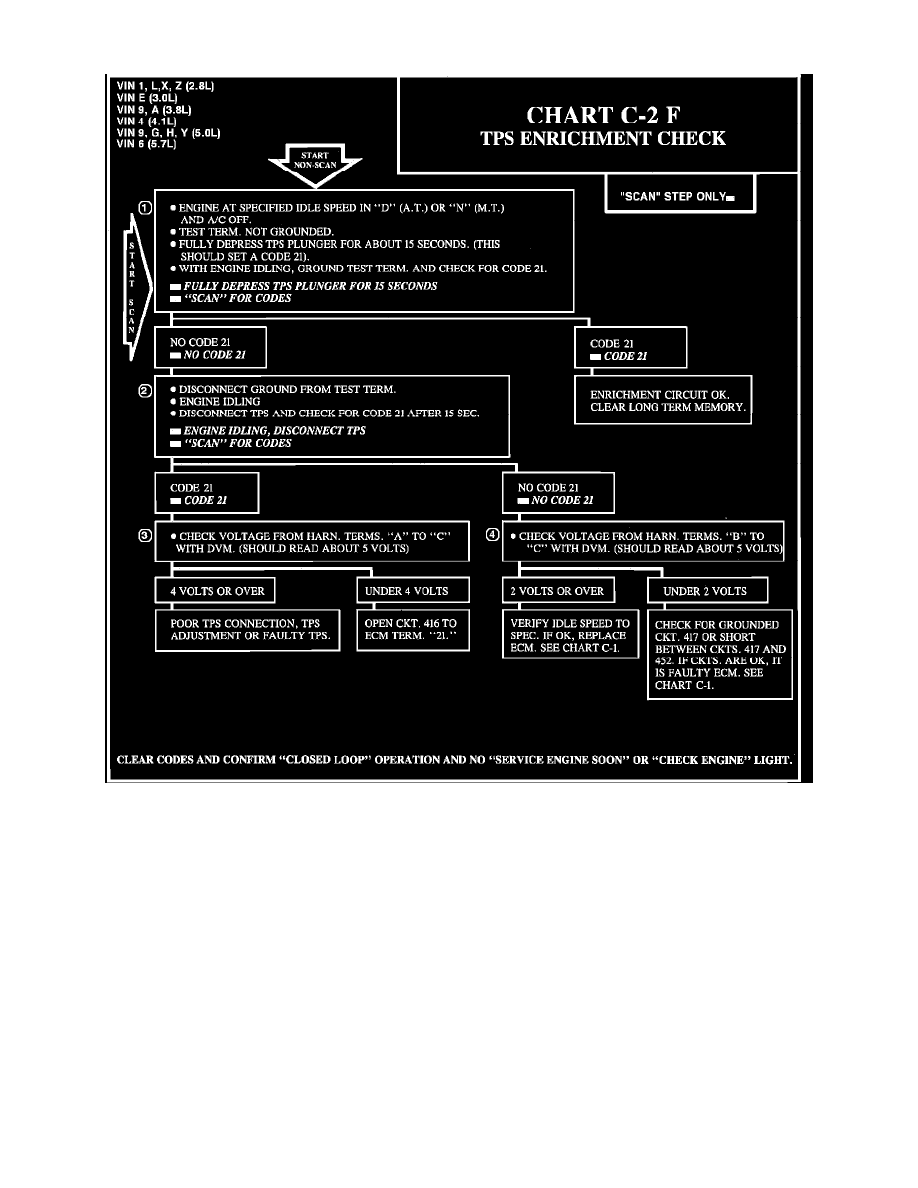

- Chart C-2F TPS Enrichment Check.

Powertrain Management
Fuel Delivery and Air Induction

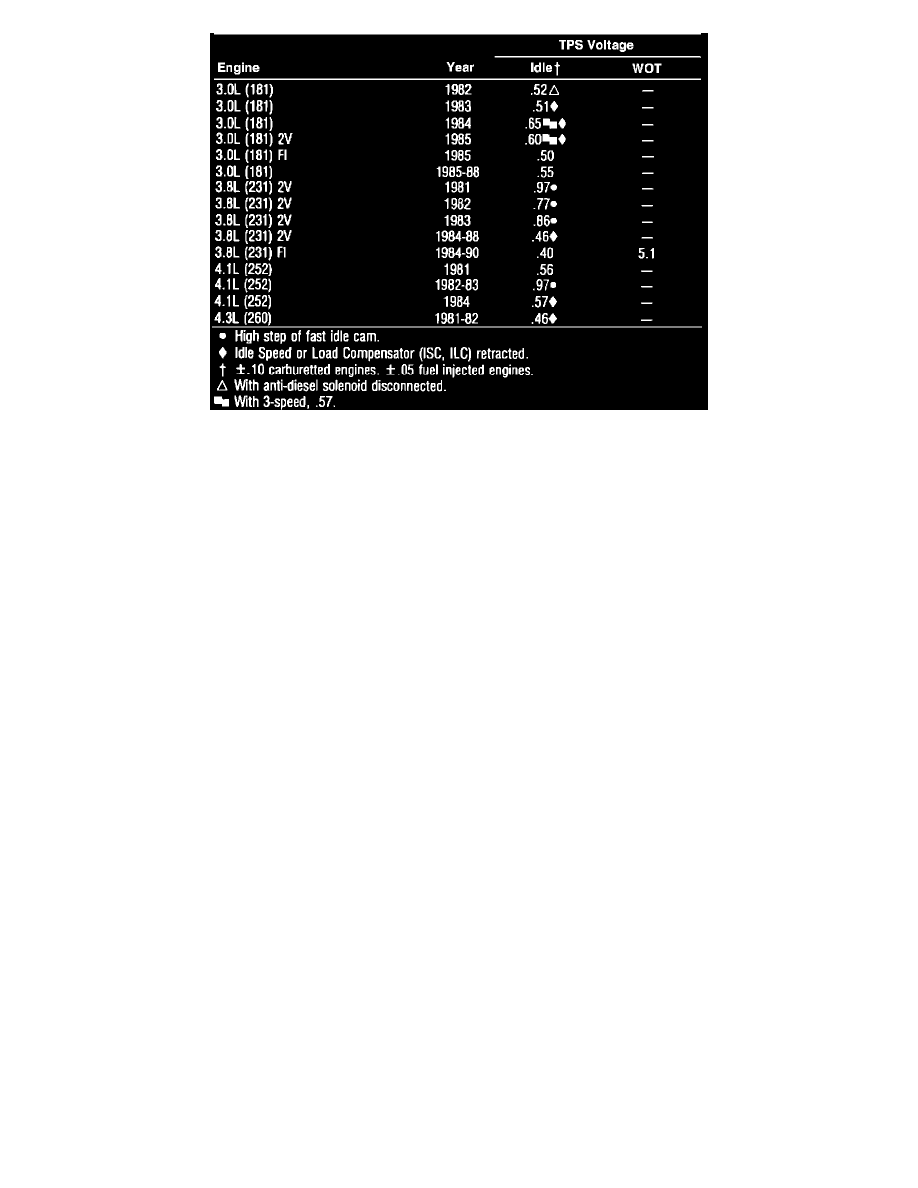

Throttle Position Sensor / Specifications
Page 2604
