Page 1

background image

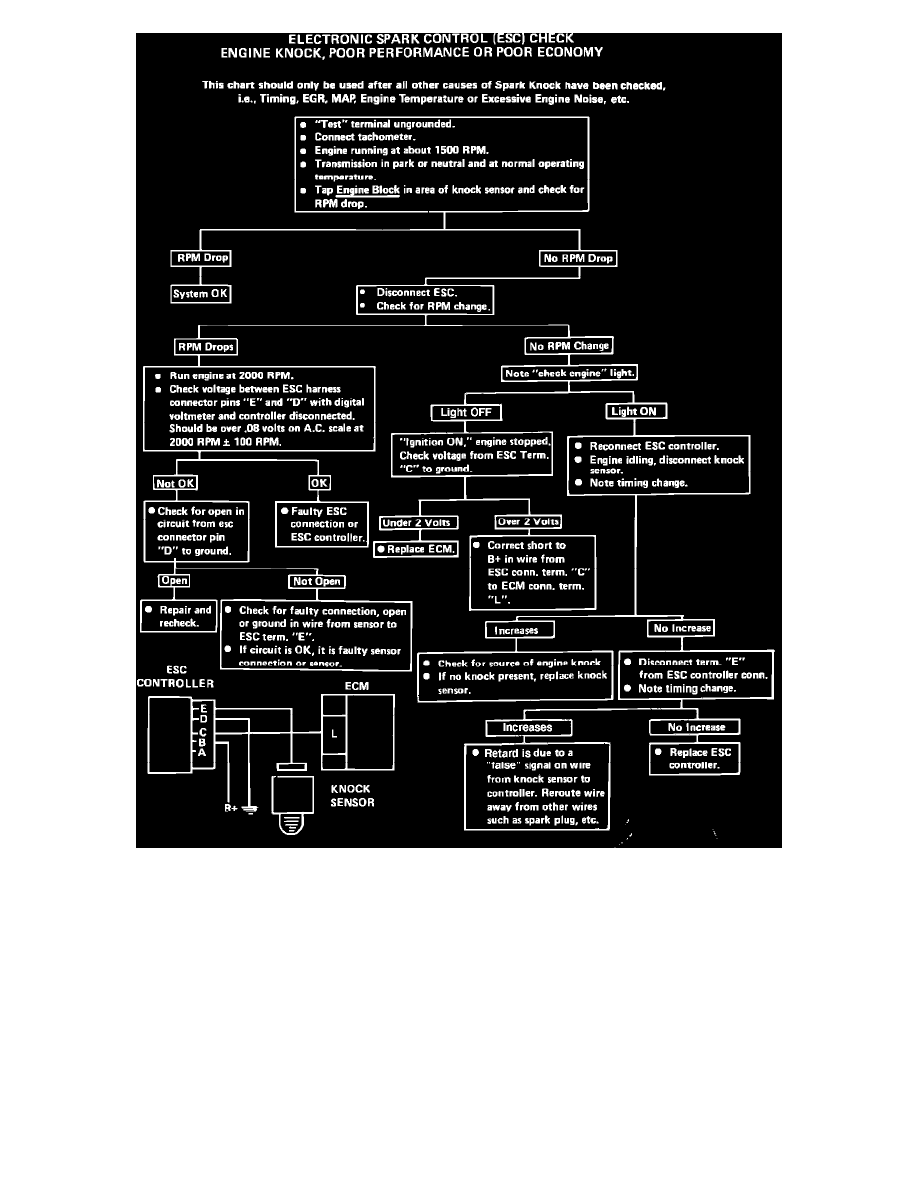

Fig. 6a ESC Performance Chart

Powertrain Management
Relays and Modules - Powertrain Management
Relays and Modules - Ignition System
Electronic Spark Timing <--> [Electronic Spark Control Module]
Component Information
Testing and Inspection
