Cutlass Ciera FWD V6-181 3.0L (1984)

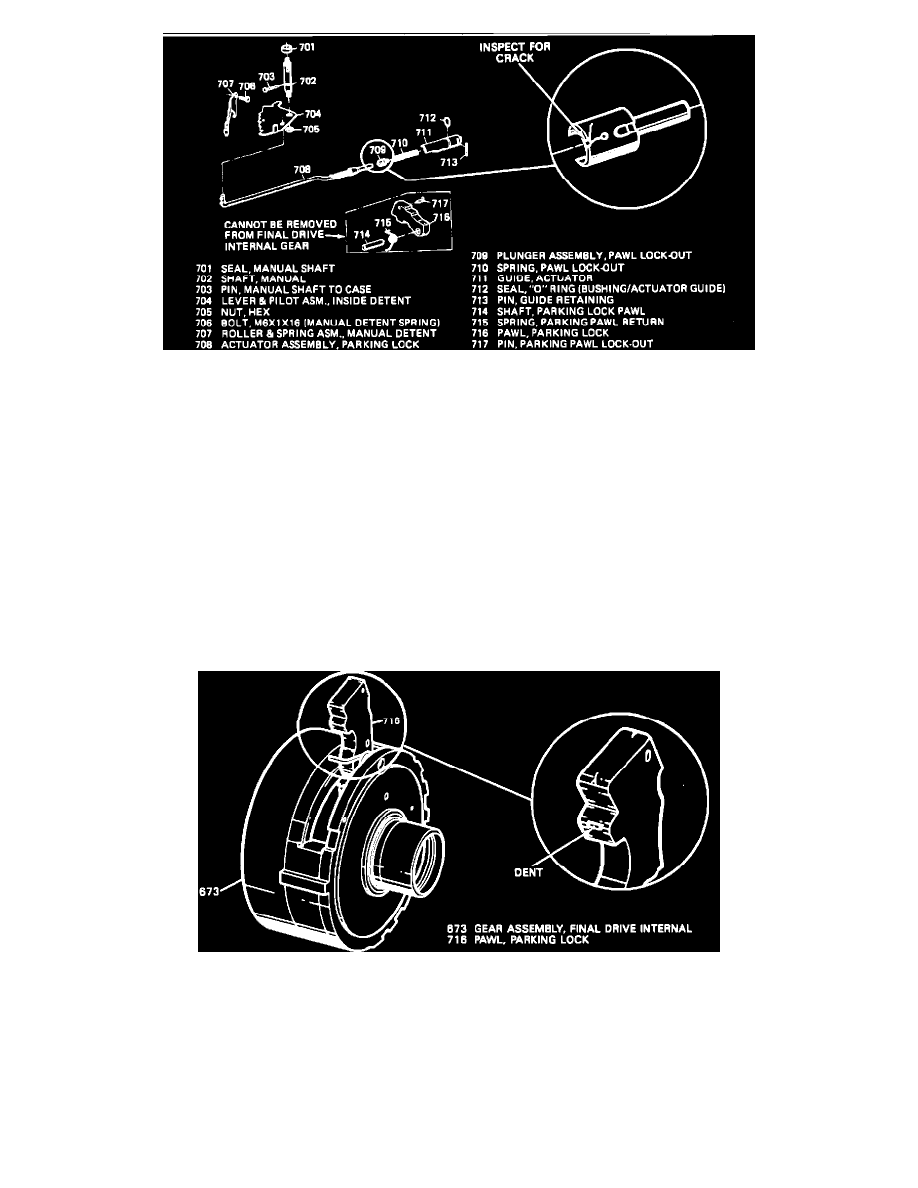

FIGURE 3 - PARKING LOCK ACTUATOR ASSEMBLY
Service Action:
(Figures 2 and 3)
If this condition is encountered, remove transaxle and replace the final drive internal gear/parking pawl assembly (No. 673) and actuator guide, plunger
and spring assembly (No. 709 - No. 711). Also inspect the parking gear for wear or damage and replace if necessary.
Service Parts Information:
Part Number
Description
8656372
Final Drive Internal Gear/Parking Pawl Assembly
8656689
Acutator Guide, Plunger and Spring Assembly
8644238
Parking Gear
Service Manual Reference:
Refer to appropriate service manual for repair information.

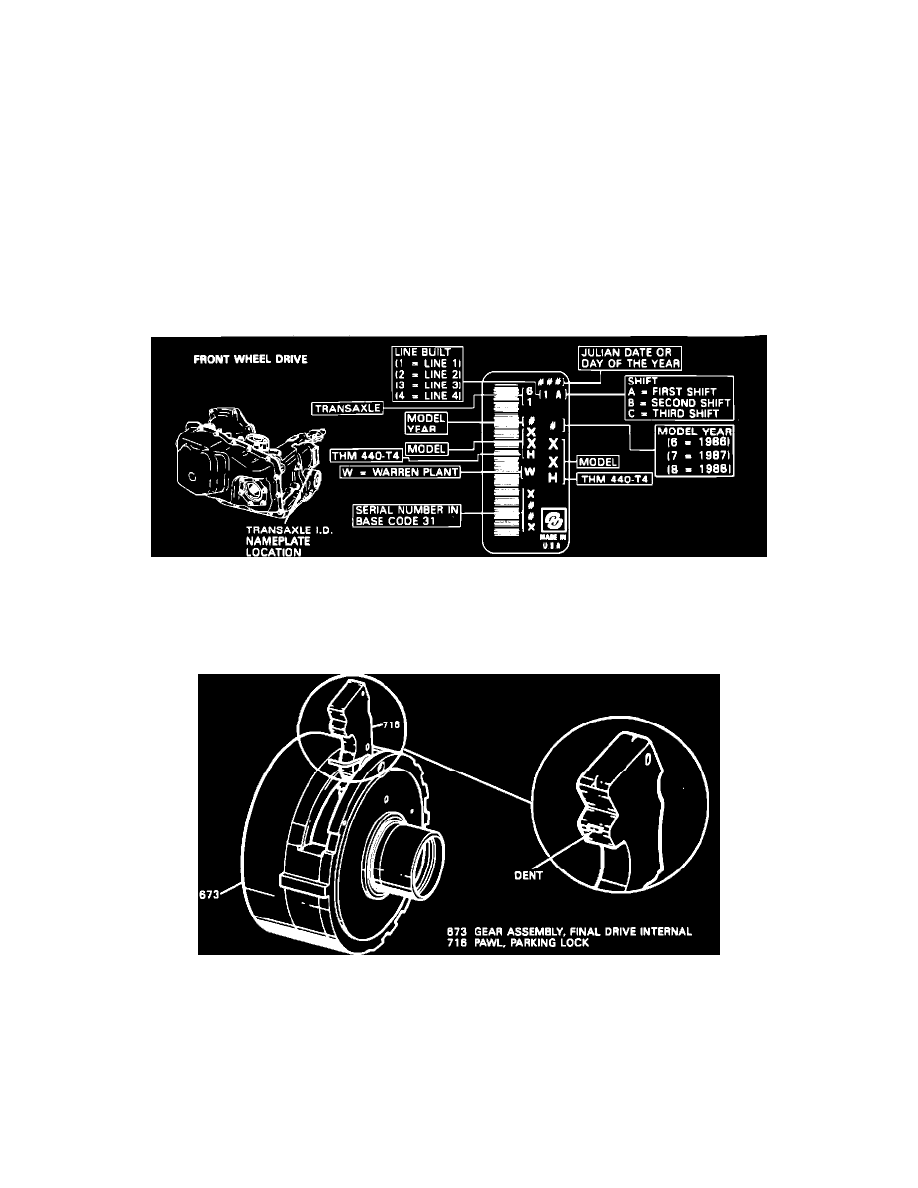

FIGURE 2 - FINAL DRIVE INTERNAL GEAR ASSEMBLY
Service Notes:
(Figure 2)
Before installing the replacement parts, inspect the new final drive internal gear/parking pawl assembly to make sure it does not have a "dent".
