Silhouette V6-191 3.1L (1990)

Page 1
background image

Expansion Block/Orifice Tube: Locations

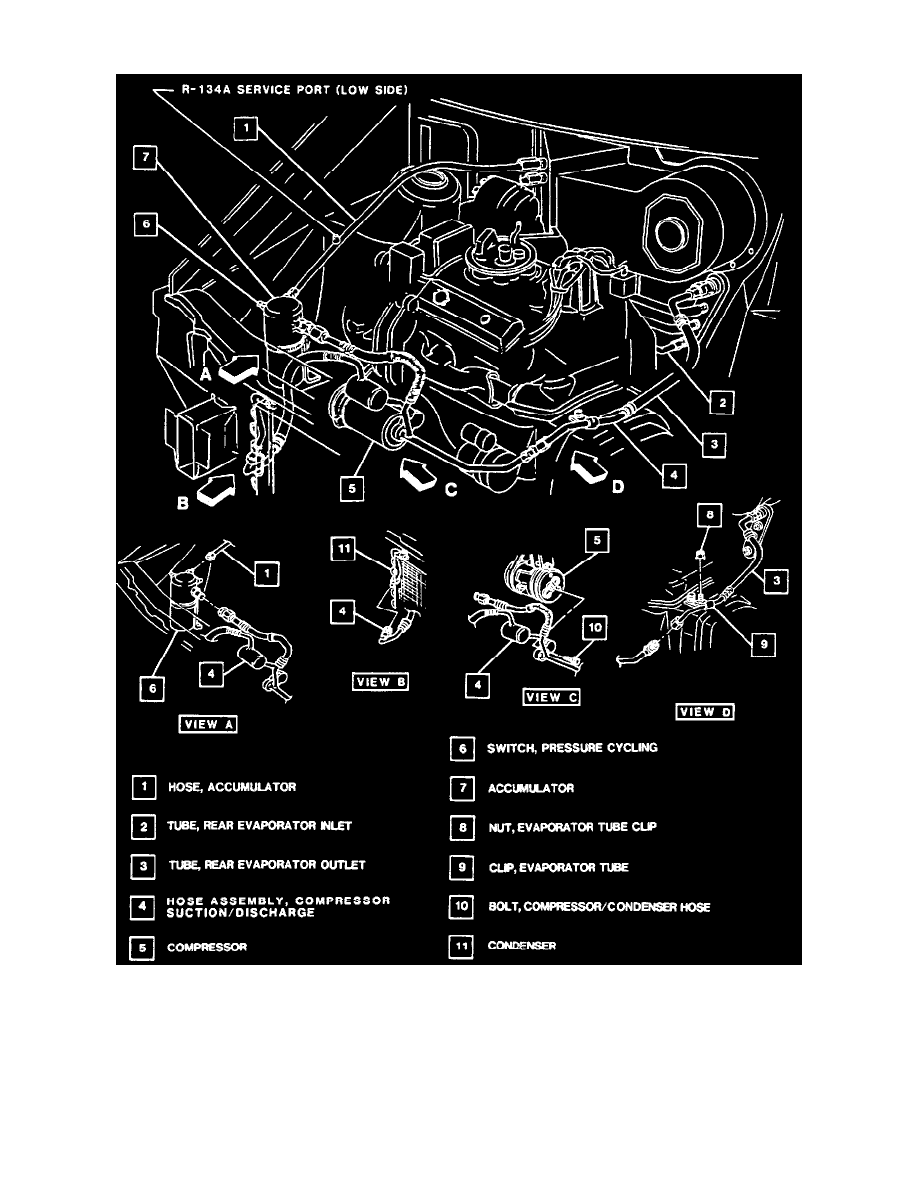

A/C System Components

The A/C evaporator tube orifice, with its mesh screen, is located in the A/C evaporator hose between the A/C condenser and the A/C evaporator.
