Silhouette V6-191 3.1L (1990)
Technical Service Bulletin # 90C01109
Date: 890901
Recall - Modular Rear Seat Latches
Subject:
MODULAR REAR SEAT LATCHES
Models/Years: 1990 SILHOUETTE
Number.
90-C-01
Date:
Sept. 1989
Section:
10-9
CONDITION
General Motors has determined that some 1990 Oldsmobile Silhouette APV model vehicles may fail conform to Federal Motor Vehicle Safety Standard
(FMVSS) 207, "Anchorage & Seats". The rear modular seat frame hold down hooks may not meet the required pull force at the rear seat anchorage.
To correct this condition, dealers are to replace the two rear hold down hooks and pivot rivets with (heat treated) hold down hooks, bolts, bushings, and
nuts on each rear modular seat (up to 5 rear seats per involved unit).
Vehicles Involved, Dealer Action & Service Procedure Information
VEHICLES INVOLVED
Involved are certain 1990 Oldsmobile Silhouette model vehicles with the following SPECIFIC Vehicle Identification Numbers:

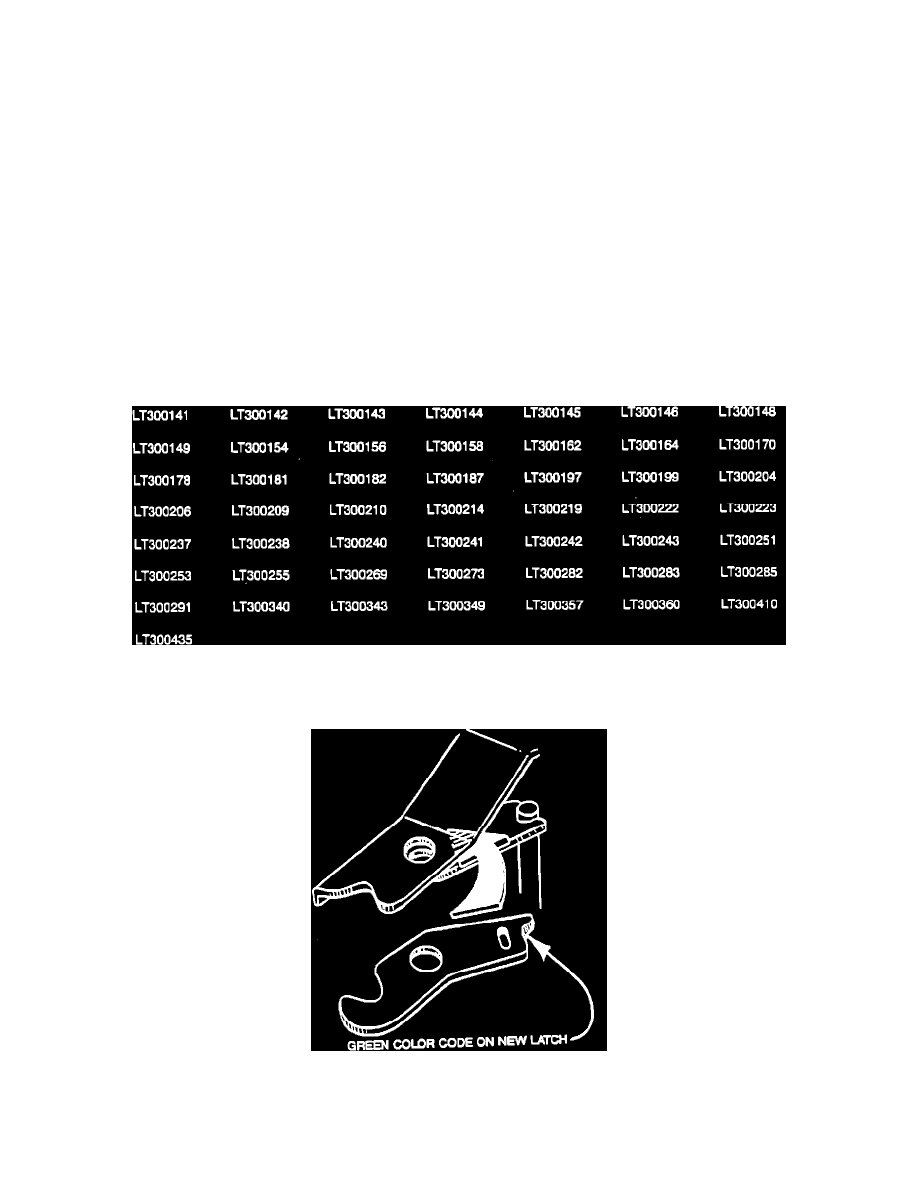

Figure 3
Vehicles with VIN's failing between the listed VIN's were repaired at the factory prior to shipment. Repaired latches are identified with green paint, or
green tape, or a green dot sticker in the general location shown in Figure 3 of the SERVICE PROCEDURE.
