Acclaim L4-153 2.5L SOHC (1990)
Fuel Injector: Locations

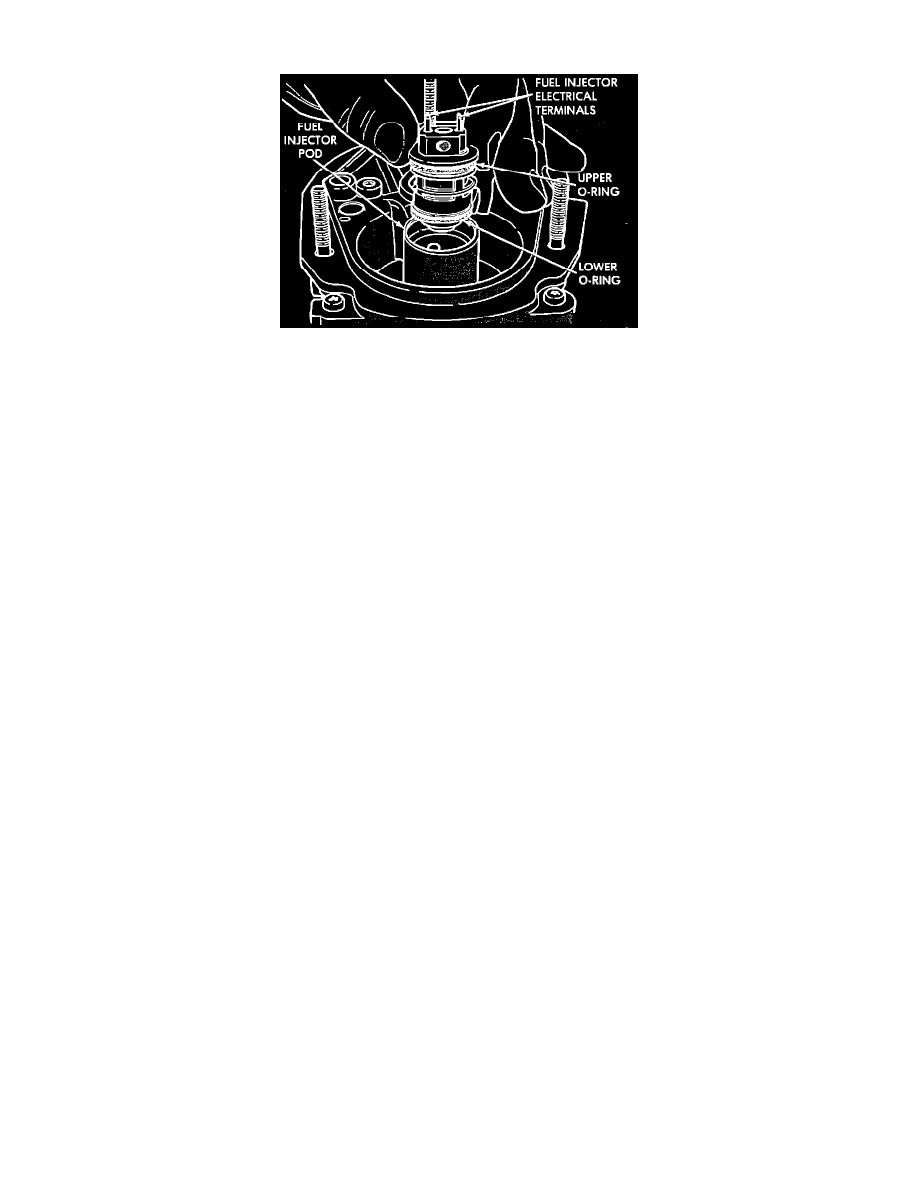

Fuel Injector Removed
The single fuel injector is found inside the throttle body, under the air cleaner housing.
