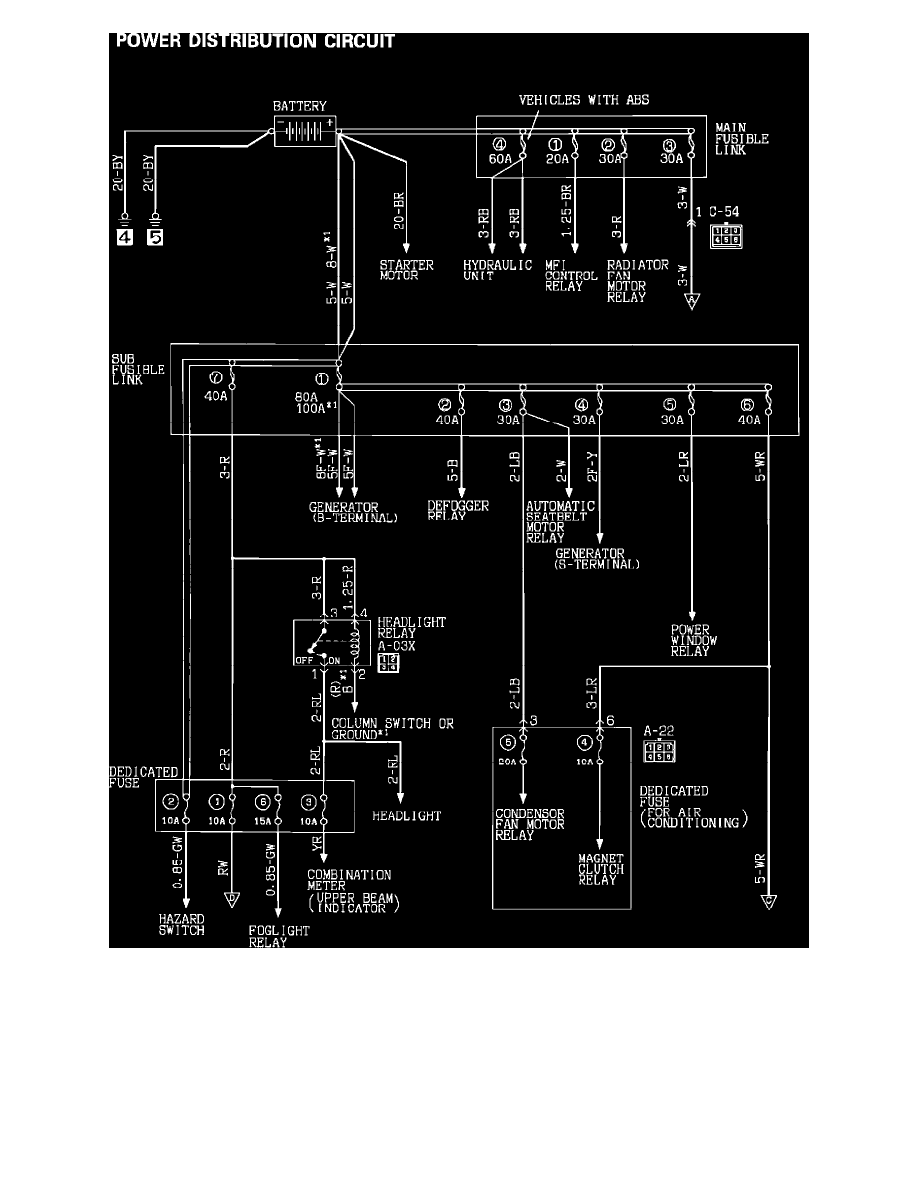

Power Distribution Circuit Diagram

Relays and Modules
Relays and Modules - Power and Ground Distribution / Relay Box / Diagrams / Diagram Information and Instructions
