Neon L4-122 2.0L DOHC VIN Y SFI (1998)
Brake Master Cylinder: Description and Operation
With Antilock Brakes
Master Cylinder And Vacuum Booster
A vehicle equipped with the Teves Mark 20 ABS uses a different master cylinder and power brake booster then a vehicle that is not equipped with
antilock brakes. A vehicle equipped with ABS uses a center port master cylinder while a vehicle which is not equipped with ABS uses a
compensating port master cylinder.

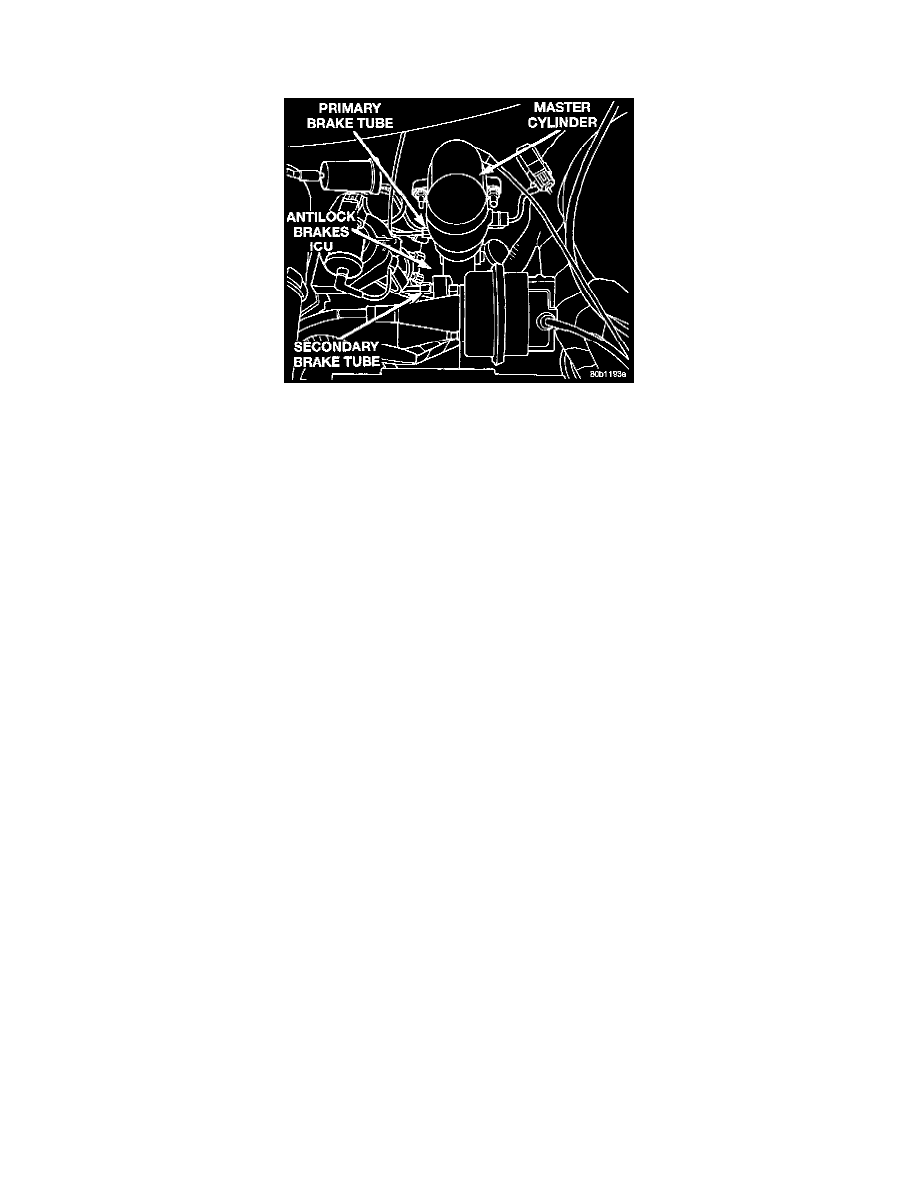

The primary and secondary outlet ports on the master cylinder go directly to the Hydraulic Control Unit (HCU).
A fluid level switch is located in the master cylinder fluid reservoir. The switch closes when a low fluid level is detected. The fluid level switch
turns on the brake warning lamp by grounding the lamp circuit. This switch does not disable the ABS system.
