Neon L4-122 2.0L DOHC VIN Y SFI (1998)
Blower Motor: Testing and Inspection
Blower Motor Noise and Vibration Diagnosis
Blower Motor Noise/Vibration Diagnosis
The resistor block supplies the blower motor with varied voltage (low and middle speeds) or battery voltage (high speed).
CAUTION: Stay clear of the blower motor and resistor block (Hot). Do not operate the blower motor with the resistor block removed from the
heater-A/C housing.

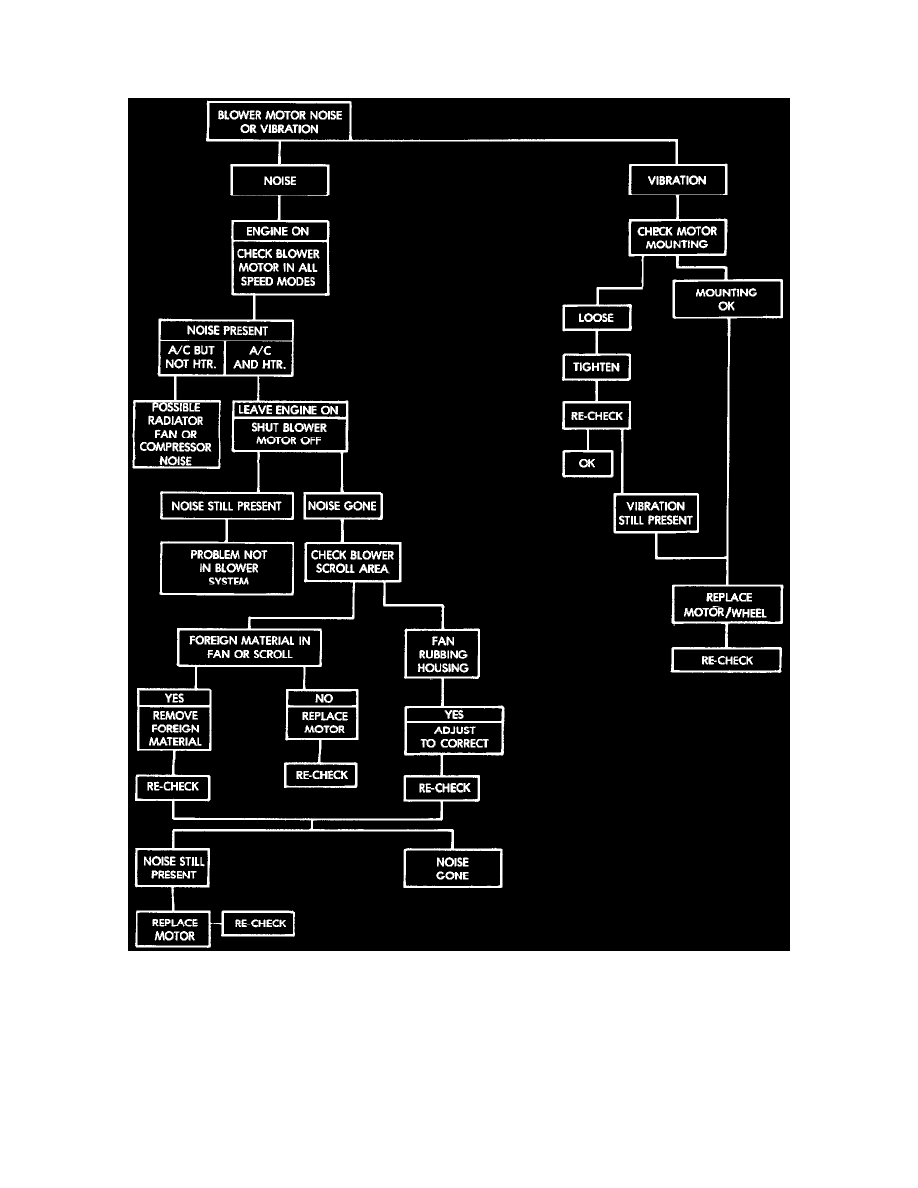

Refer to the Blower Motor Vibration/Noise chart for diagnosis.
