Neon L4-122 2.0L DOHC VIN Y SFI (1998)
Hose/Line HVAC: Service and Repair
A/C Discharge Hose/Line Replacement
WARNING: THE REFRIGERANT SYSTEM MUST BE RECOVERED BEFORE SERVICING ANY PART OF THE REFRIGERANT
SYSTEM.
REMOVAL
1. Using a R-134a refrigerant recovery machine, remove the refrigerant from A/C system.

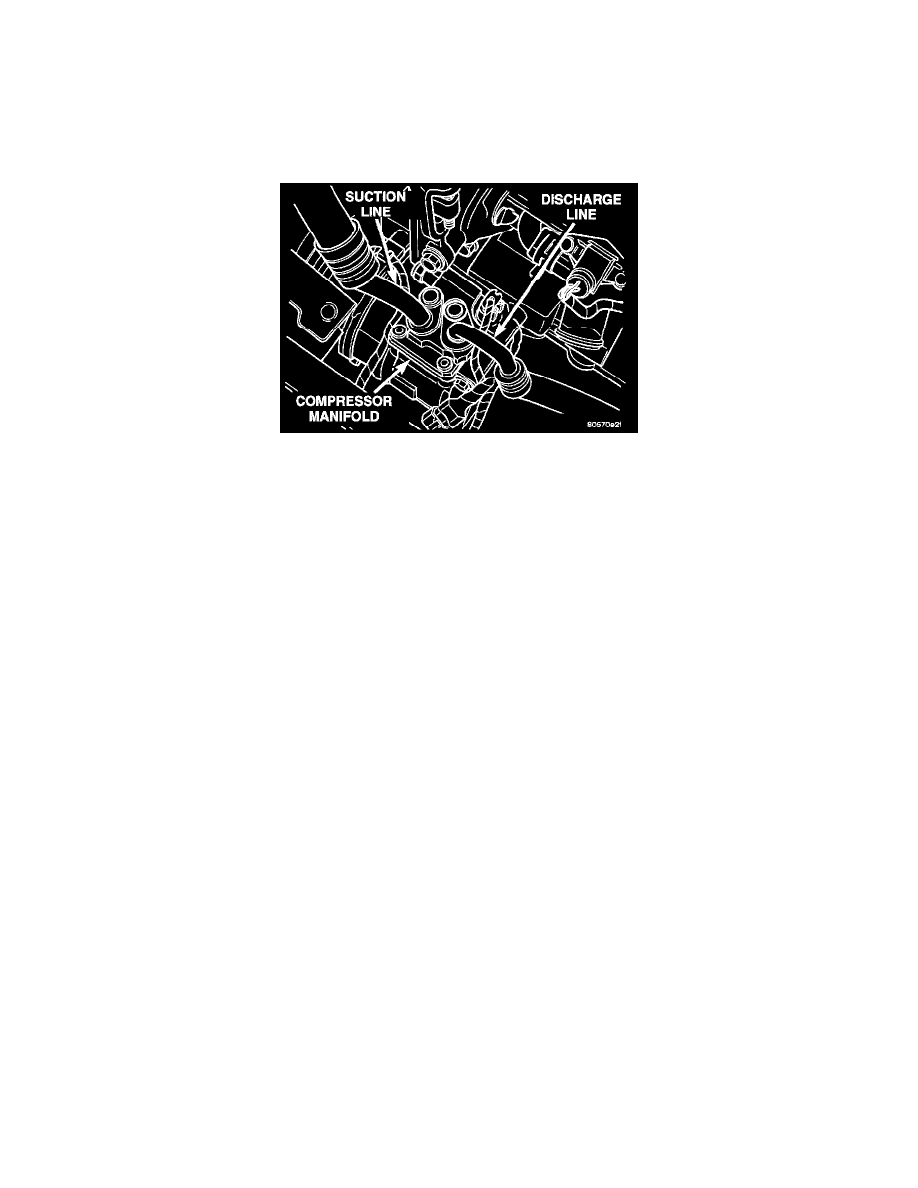

Discharge Line
2.
From the top side of the vehicle, remove line at compressor.
3.
From the bottom side of the vehicle, remove line at condenser.
INSTALLATION
-
For installation, reverse the above procedures.
