PB 250 V8-318 5.2L VIN T 2-BBL (1983)
Sensors and Switches
Sensors and Switches - Cruise Control / Brake Switch (Cruise Control) / Testing and Inspection
Page 179
Page 2

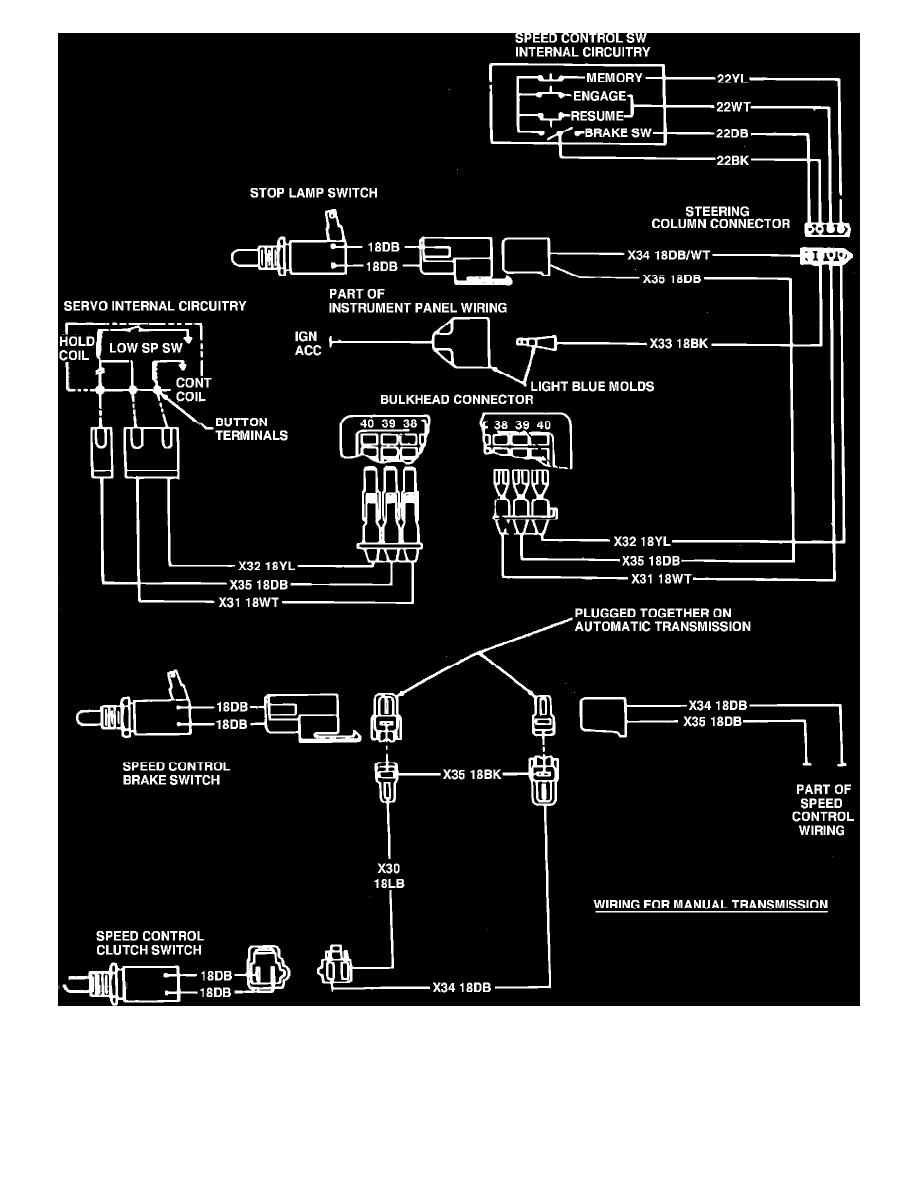

Fig. 3 Speed control wiring diagram. 1981-84 Ramcharger, Trail Duster & Conventional Cabs
Sensors and Switches
Sensors and Switches - Cruise Control / Brake Switch (Cruise Control) / Testing and Inspection
Page 179
