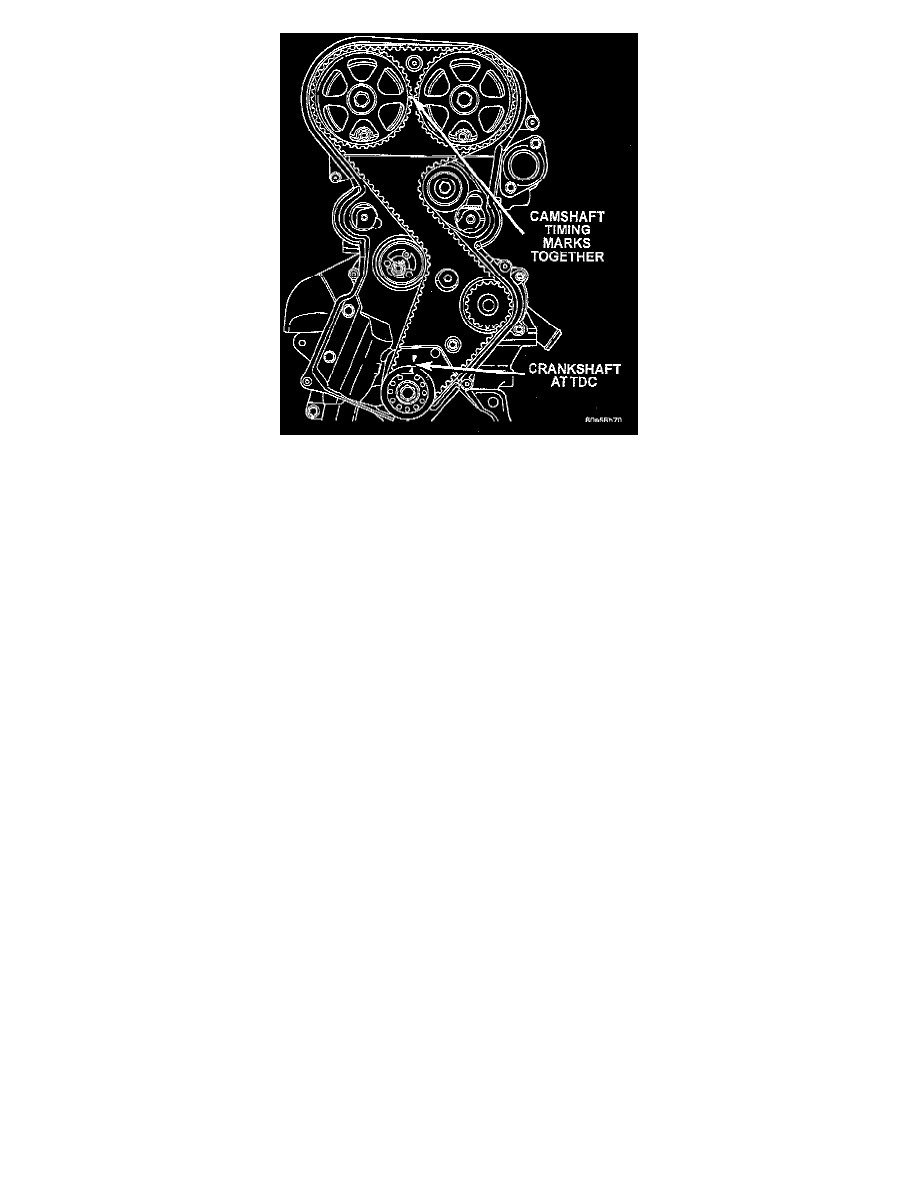

6. Rotate crankshaft 2 revolutions and check the alignment of the timing marks.
7. Install right engine mount and support bracket.
8. Install upper timing belt cover bolts 4.5 Nm (40 inch lbs.).
9. Install the lower timing belt cover bolts 4.5 Nm (40 inch lbs.).

10. Install crankshaft damper.
11. Install accessory drive belts.
12. Install right inner splash shield.
13. Install right front wheel.
