Voyager V6-229 3.8L (1996)
![background image](/plymouth/voyager/v6-229_3.8l/Page-2407003.png)

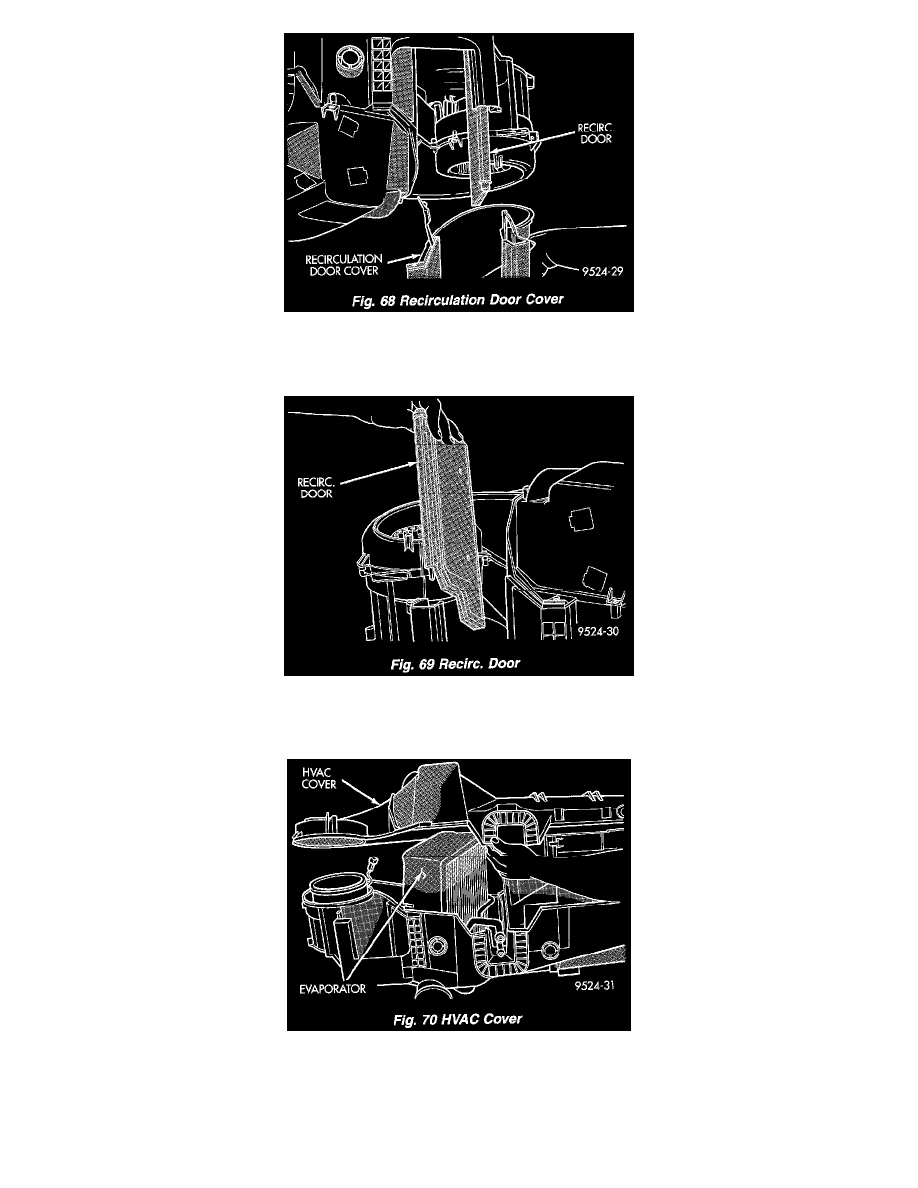

Recirculation Door Cover
6. Remove recirculation door cover.
Recirculation Door
7. Remove recirculation door.
HVAC Cover
8. Remove screws around the perimeter of the upper HVAC housing.
CAUTION: Do not damage the insulation barrier surrounding the evaporator.
