6000 V6-173 2.8L (1988)

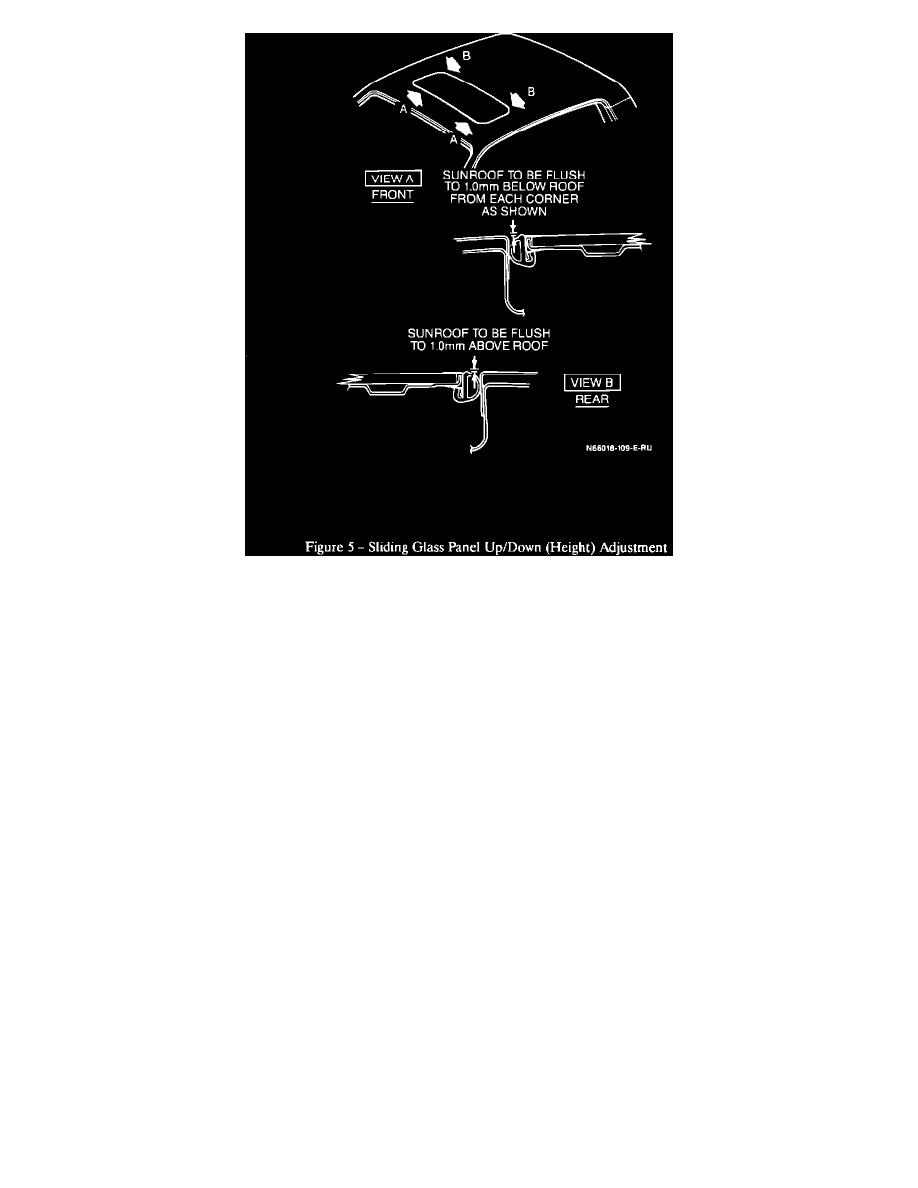

Figure 5
^
Adjust front corners of glass panel so that it is flush to 1.5 mm (flush to 0.060") BELOW roof panel. Refer to Figure 5.
^
Adjust rear corners of glass panel so that it is flush to 1.5 mm (flush to 0.060") ABOVE roof panel. Refer to Figure 5.
Fore/AFT Specification:
^
The sliding glass panel weatherstrip seal should make continuous contact with the roof panel around the entire sunroof opening. To check for
contact, completely close the sunroof and insert a business card or 0.040" thickness gage between the sunroof seal and roof panel. Check for
seal-to-roof panel contact by sliding the card around the entire seal contact area. The card should drag slightly as it is pulled between the seal
and the roof panel.
^
If the gap is excessively wide or narrow at the front or rear, adjust the glass panel fore/aft position as described in the appropriate Pontiac
Service Manual.
Parts are currently available from GMSPO.
Use applicable labor operation.
Black Max is a trademark of Loctite Corporation, and Loctite is a registered trademark of Loctite Corporation.
^
If the weatherstrip seal kit is not used upon receipt at the dealer from GMSPO, and the adhesive was in-date at the time of receipt, it is the
dealer's responsibility to ensure that the adhesive has not expired before use.
^
If adhesive is left over after completion of the weatherstrip seal kit installation procedure, it should be refrigerated if it is intended to be used
at a later date. In any case, Loctites Black Max (TM) 380 Adhesive should be discarded if the date code on the back label of the bottle is
greater than 12 months prior to the current date. Refer to Figure 1 for interpretation of the date code information.
Installation Procedure:
1.
Remove sunroof sliding glass panel as described in the Roof Section of the appropriate Service Information Manual
