6000 V6-173 2.8L (1988)

Page 1
background image

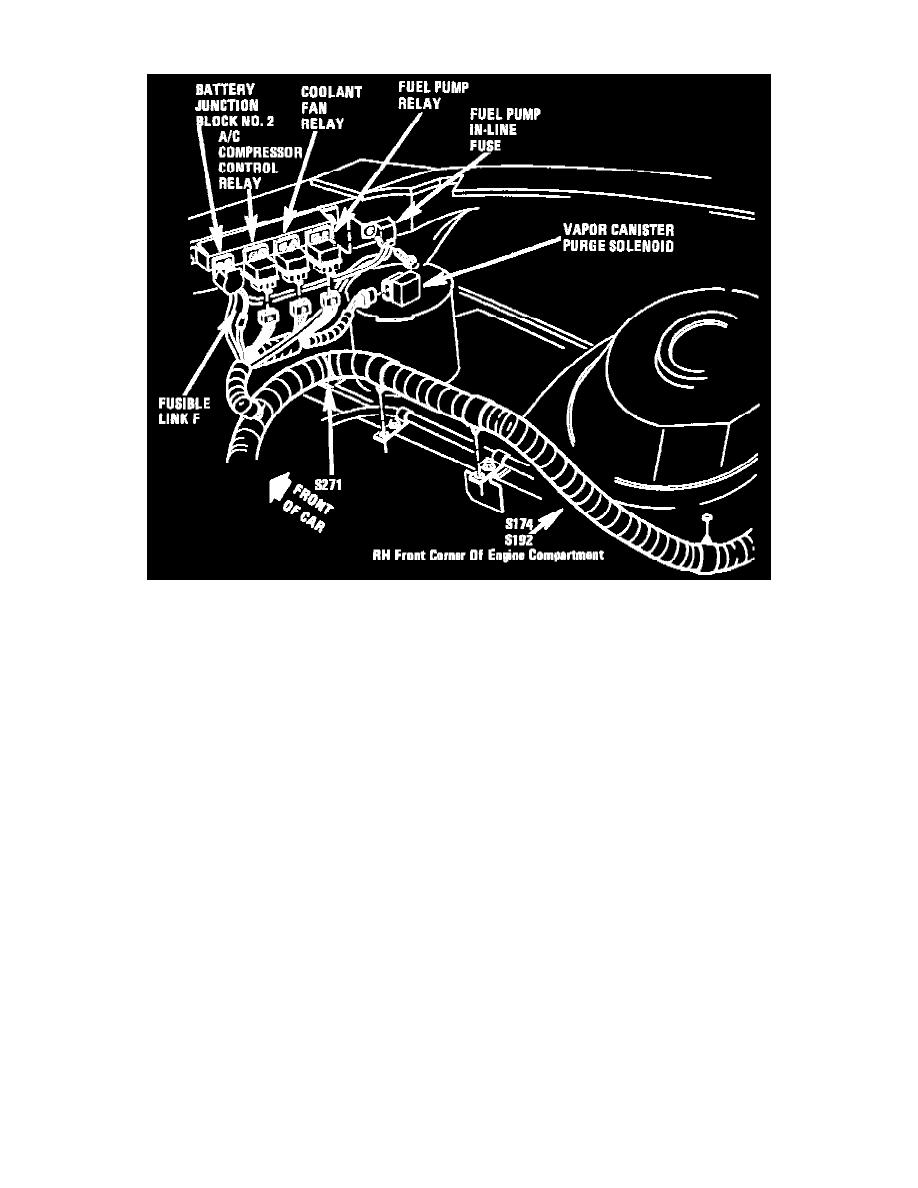

Fuel Pump Relay: Locations

Fuel Pump Relay VIN W

The fuel Pump relay is mounted on the multi-use bracket attached to the radiator support in the right front of the engine area.
