6000 V6-173 2.8L (1988)
Throttle Body: Service and Repair
Throttle Body Coolant Cavity Cover
REMOVE
Throttle body from intake plenum.

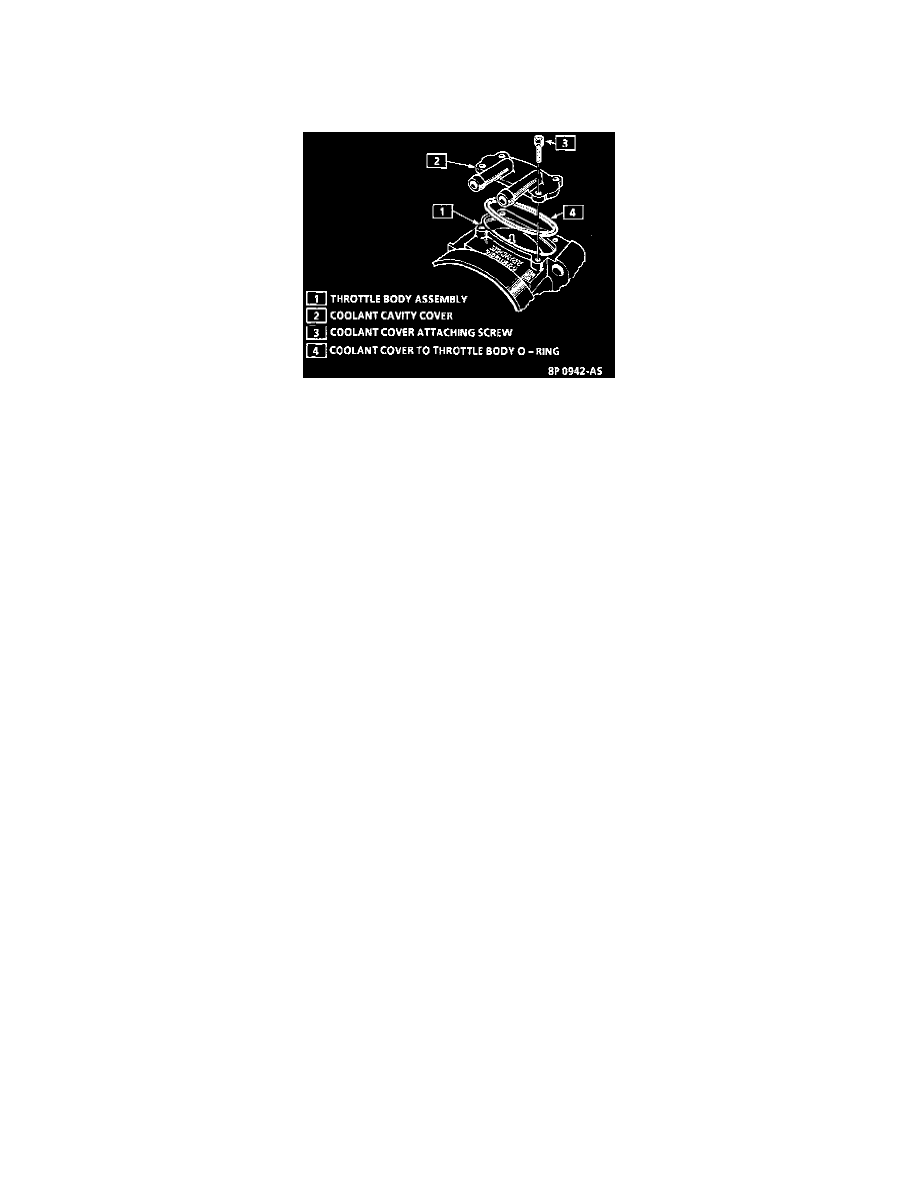

Coolant Cavity Cover Assembly
DISASSEMBLE
^
Coolant cover attaching screws.
^
Coolant cavity cover and O-Ring.
^
Discard O-Ring.
CLEANING AND INSPECTION
^
Clean O-Ring sealing surfaces
^
Inspect sealing surfaces for corrosion or damage that could cause a coolant leak.
^
Replace coolant cavity cover or throttle body if necessary.
ASSEMBLE
^
Lubricate new coolant cover to throttle body O-Ring (46) with ethylene glycol antifreeze.
^
O-Ring in cavity of throttle body.
^
Coolant cavity cover (40).
^
Hold cover in place.
^
Coolant cover attaching screws (45),
Tighten
Coolant cover attaching screws to 3.0 Nm (27 lb in).
INSTALL
Throttle body to intake plenum.
