6000 V6-173 2.8L (1988)
FIGURE 2
SERVICE PARTS INFORMATION:

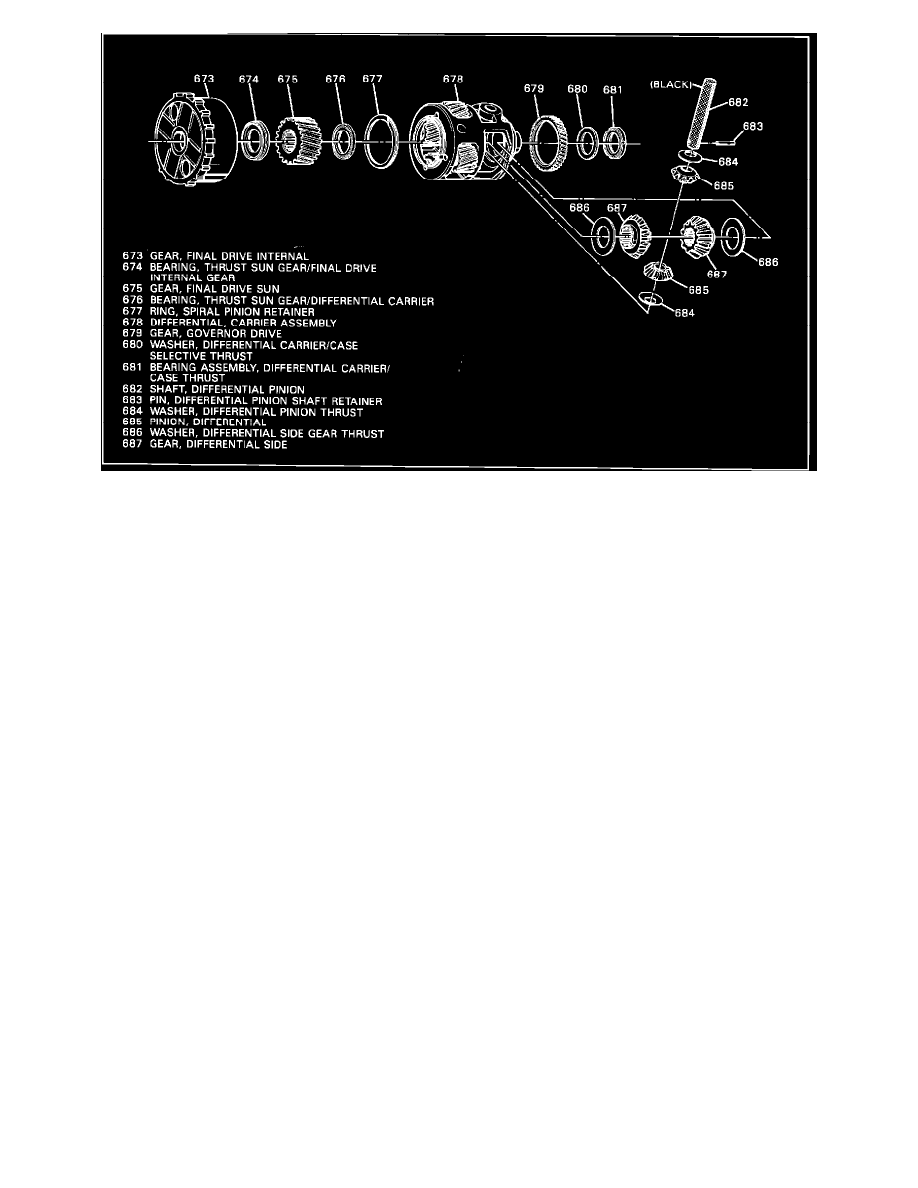

(Refer to Figure 2)
The new style final drive can be identified by three physical characteristics:
1.
The Differential Pinion Shaft (682) is smaller in diameter and black in color (normally silver)
2.
The Differential Side Gears (687) have 16 teeth instead of 15 teeth.
3.
The Differential Pinion Gears (685) have 10 teeth instead of 11 teeth.
When ordering parts to service THM 125C transaxles equipped with new style final drives, use the following part numbers listed below:
Part No.
Description
8662922
Package, Final Drive (3.33 final drive ratio)
8661905
Package, Final Drive (3.06 final drive ratio)
8662923
Package, Final Drive (2.84 final drive ratio)
8662924
Package, Differential Side Gear
When ordering parts to service THM 125C transaxles with previous style final drives, use the following parts numbers listed below:
Part No.
Description
8643963
Package, Final Drive (3.33 final drive ratio)
8643990
Package, Final Drive (3.06 final drive ratio)
8653941
Package, Final Drive (2.84 final drive ratio)
8646919
Package, Differential Side Gear
SERVICE MANUAL REFERENCE:
Refer to the THM 125C (MD9) Automatic Transaxle Unit Repair section whenever servicing the Differential and Final Drive.
