Aztek AWD V6-3.4L VIN E (2004)
Radiator Support: Service and Repair

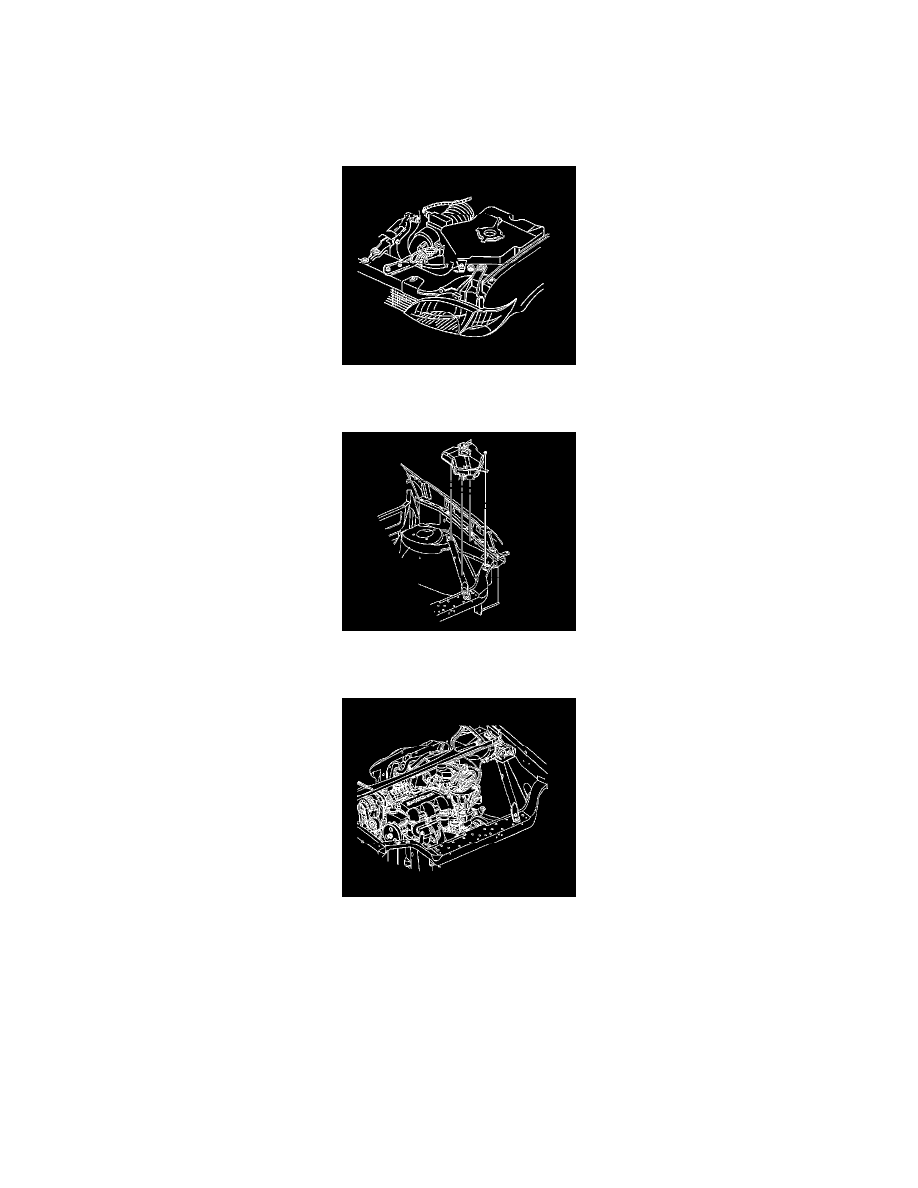

Brace Replacement - Front Fender Upper Diagonal - Left
Brace Replacement - Front Fender Upper Diagonal - Left
Removal Procedure
1. Open the hood.
2. Remove the engine coolant heater harness from the front fender diagonal brace, if equipped.
3. Reposition the engine coolant reservoir from the front fender diagonal brace. Refer to Coolant Recovery Reservoir Replacement in Engine
Cooling.
4. Reposition the cruise control module from the front fender diagonal brace. Refer to Cruise Control Module Replacement in Cruise Control.
