Aztek AWD V6-3.4L VIN E (2004)

  • Body and Frame
  • Sensors and Switches - Body and Frame
  • Mirror Memory Switch
  • Component Information
  • Diagrams

Page 1
background image

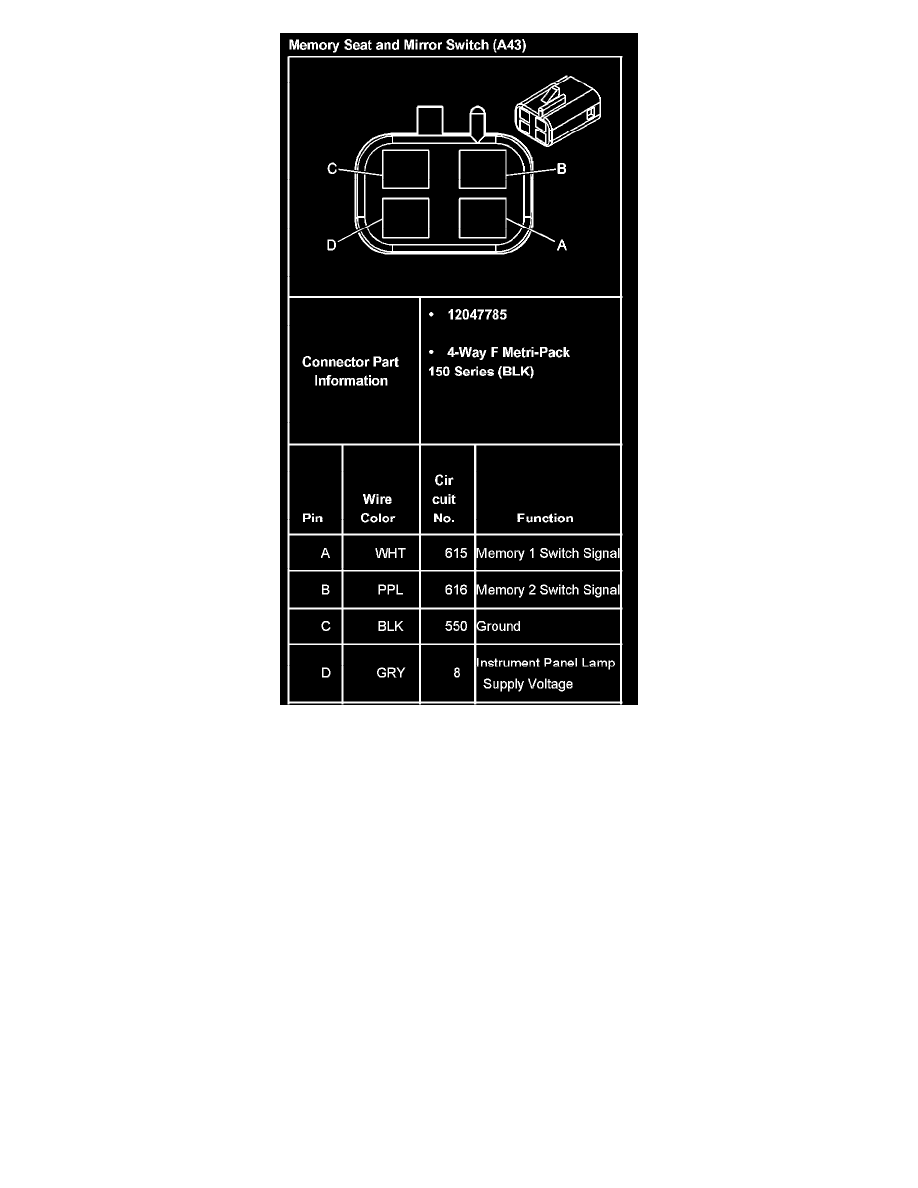

Memory Seat And Mirror Switch (With RPO Code A43)

  • Body and Frame
  • Sensors and Switches - Body and Frame
  • Mirror Memory Switch
  • Component Information
  • Diagrams
