Alignment: Description and Operation

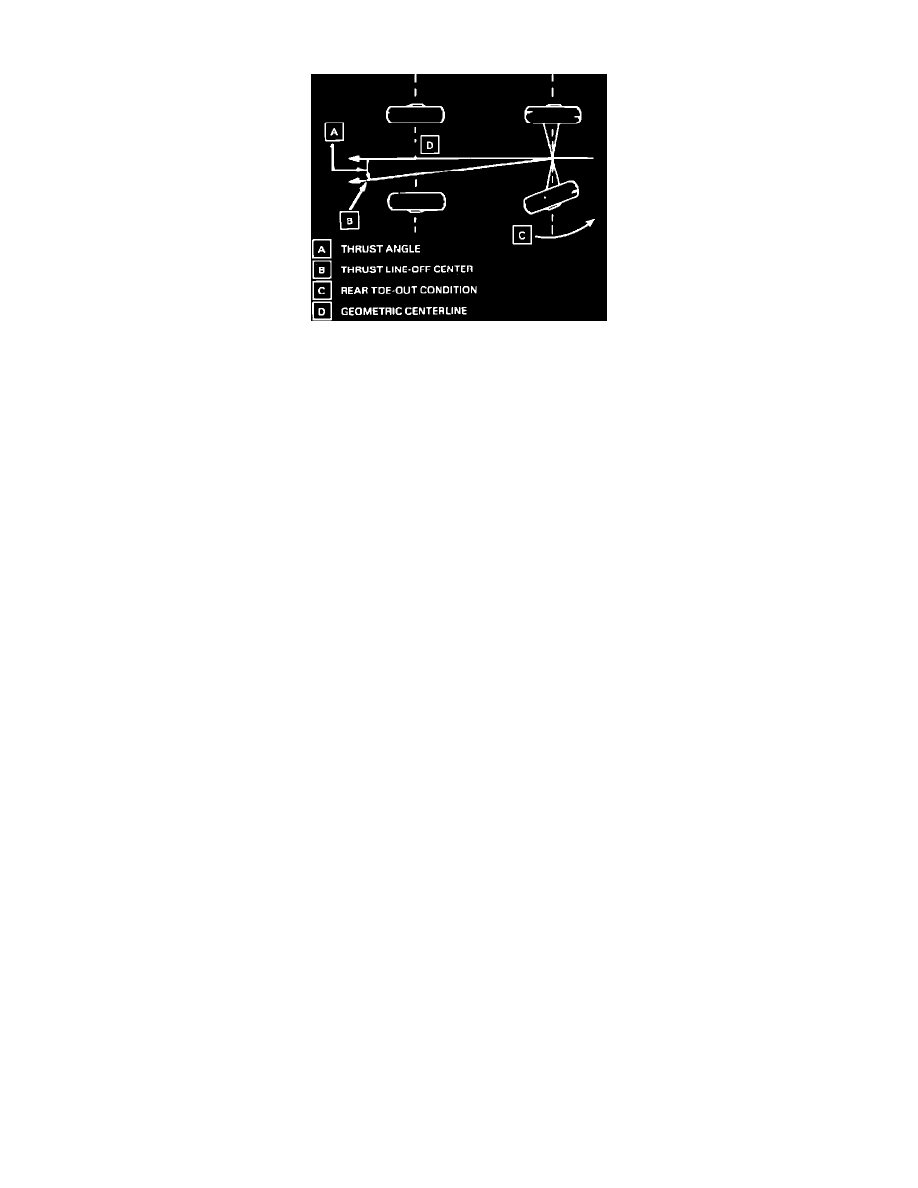

Fig. 7 Thrust Angle Check
The vehicle is steered by the front wheels. The path which the rear wheels follow is the thrust angle, Fig. 7. In an ideal setting, the thrust angle would
be aligned with that of the vehicle center line.
