G5 L4-2.2L (2007)
Timing Component Alignment Marks: Locations
^
Install the timing chain drive sprocket to the crankshaft with the timing mark in the 5 o'clock position.
Important:
^
There are 3 colored links on the timing chain. Two links are of matching color, and one link is of a unique color. Use the following procedure to
line up the links with the sprockets. Orient the chain so that the colored links are visible.
^
Always use new sprocket bolts.

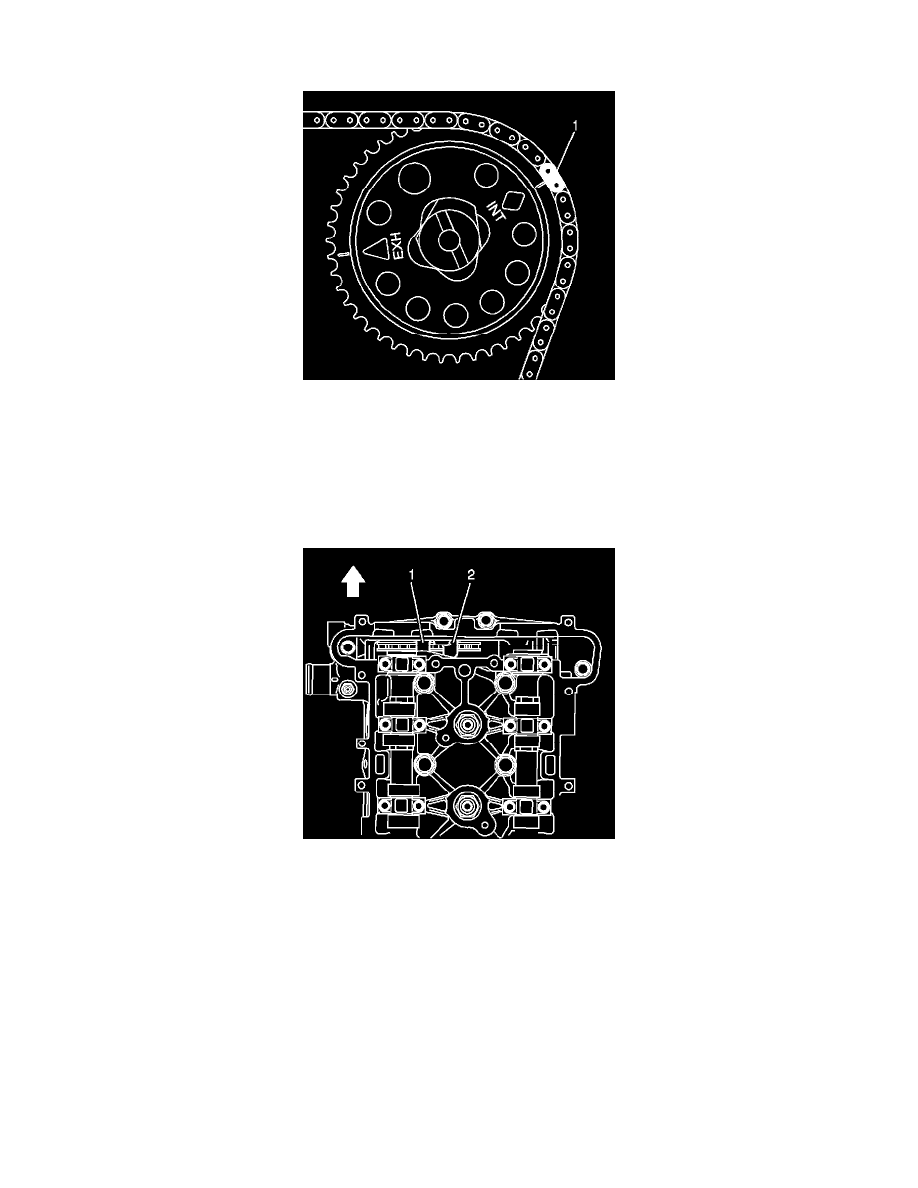

Assemble the intake camshaft sprocket to the timing chain with the timing mark lined up with the uniquely colored link (1). Hand tighten a new
intake camshaft sprocket bolt.
^
Lower the timing chain through the opening in the cylinder head. Use care to ensure that the chain goes around both sides of the cylinder block
bosses (1, 2).
