G5 L4-2.2L (2007)

Page 1
background image

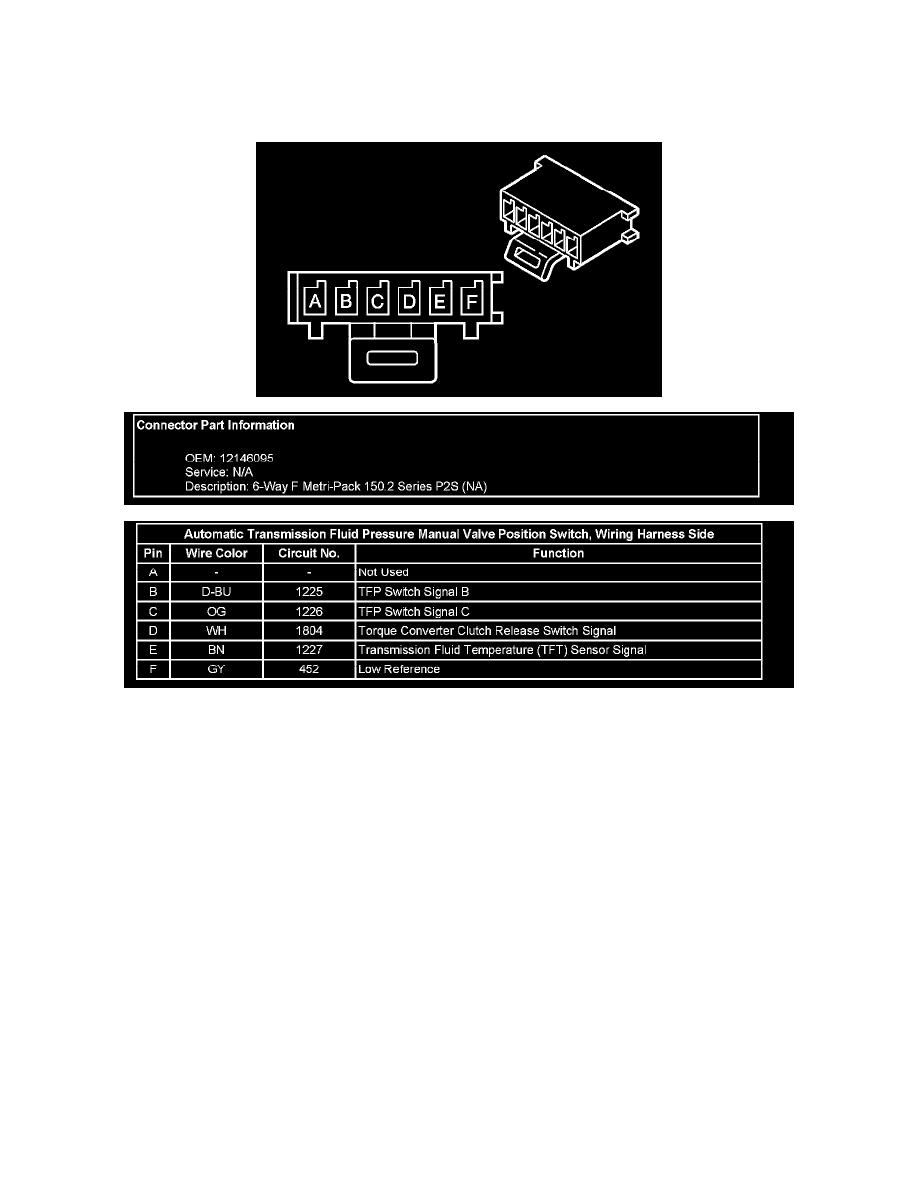

Fluid Pressure Sensor/Switch: Diagrams

Automatic Transmission Internal Connector End Views

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side

Automatic Transmission Fluid Pressure Manual Valve Position Switch, Wiring Harness Side
