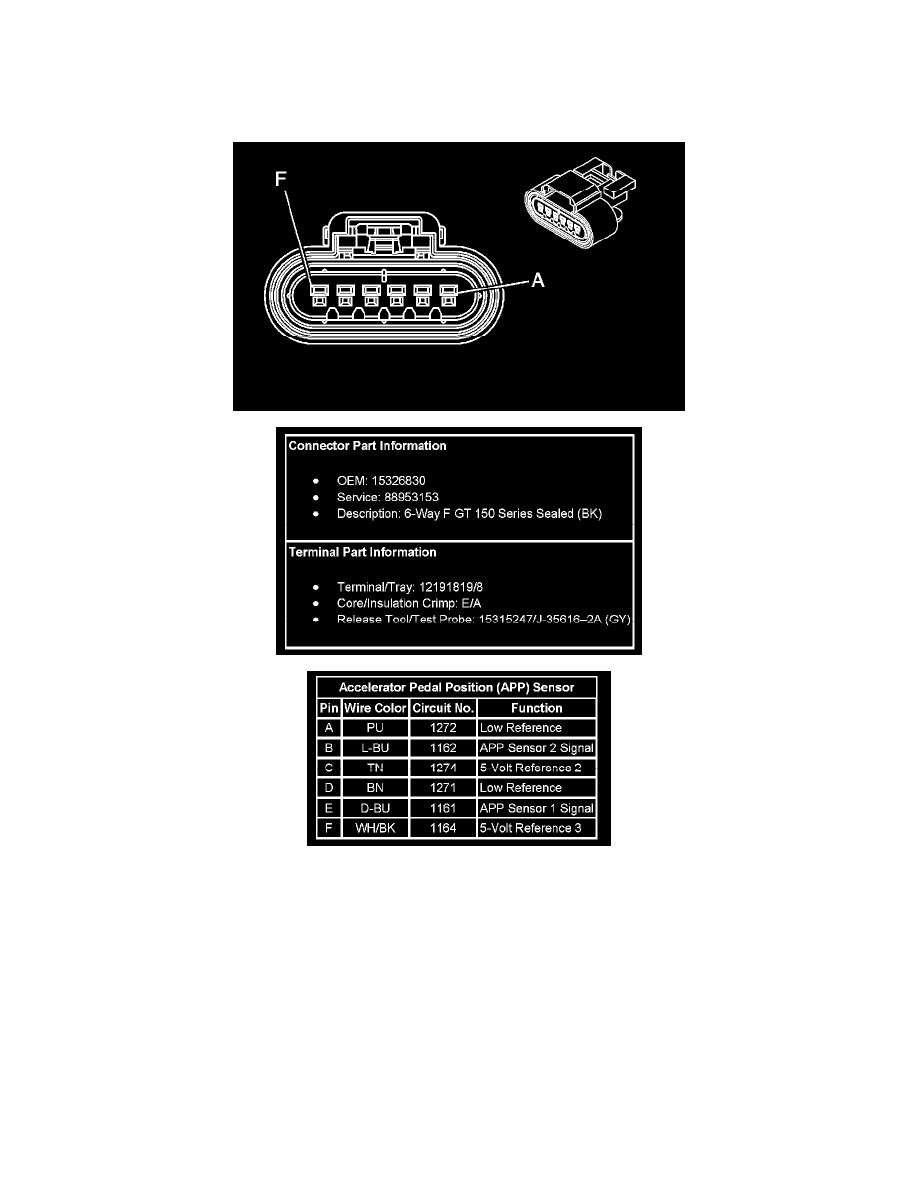

Accelerator Pedal Position Sensor: Diagrams

Engine Controls Connector End Views

Accelerator Pedal Position (APP) Sensor
