G6 V6-3.6L (2007)
Case: Diagrams

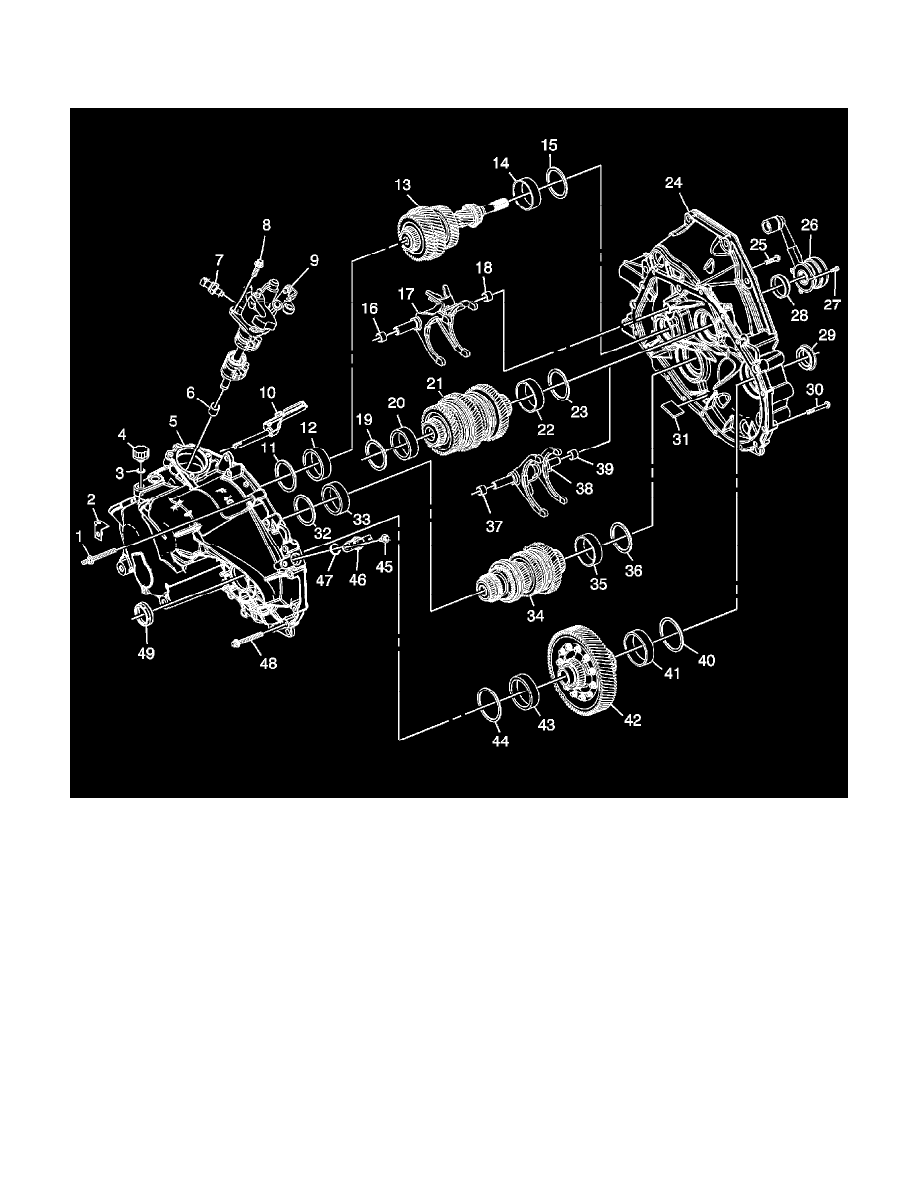

Disassembled Views
Case Components
1 - Case Bolt/Screw
2 - Bracket
3 - Vent Washer
4 - Vent Cap
5 - Transmission Case
6 - Shift Control Shaft Bushing
7 - Back Up Lamp Switch
8 - Shift Control Housing Bolt/Screw
9 - Shift Control - w/ Shift Control Shaft - Housing Assembly
10 - Oil Trough
11 - Input Shaft Bearing Shim
12 - Input Shaft Bearing Cup
13 - Input Shaft Assembly
14 - Input Shaft Bearing Cup
15 - Input Shaft Bearing Shim
16 - Shift Shaft Bushing
17 - 3rd, 4th and Reverse Fork Assembly
