G8 V8-6.0L (2009)
Air Door Actuator / Motor: Locations
Instrument Panel/Center Console Component Views

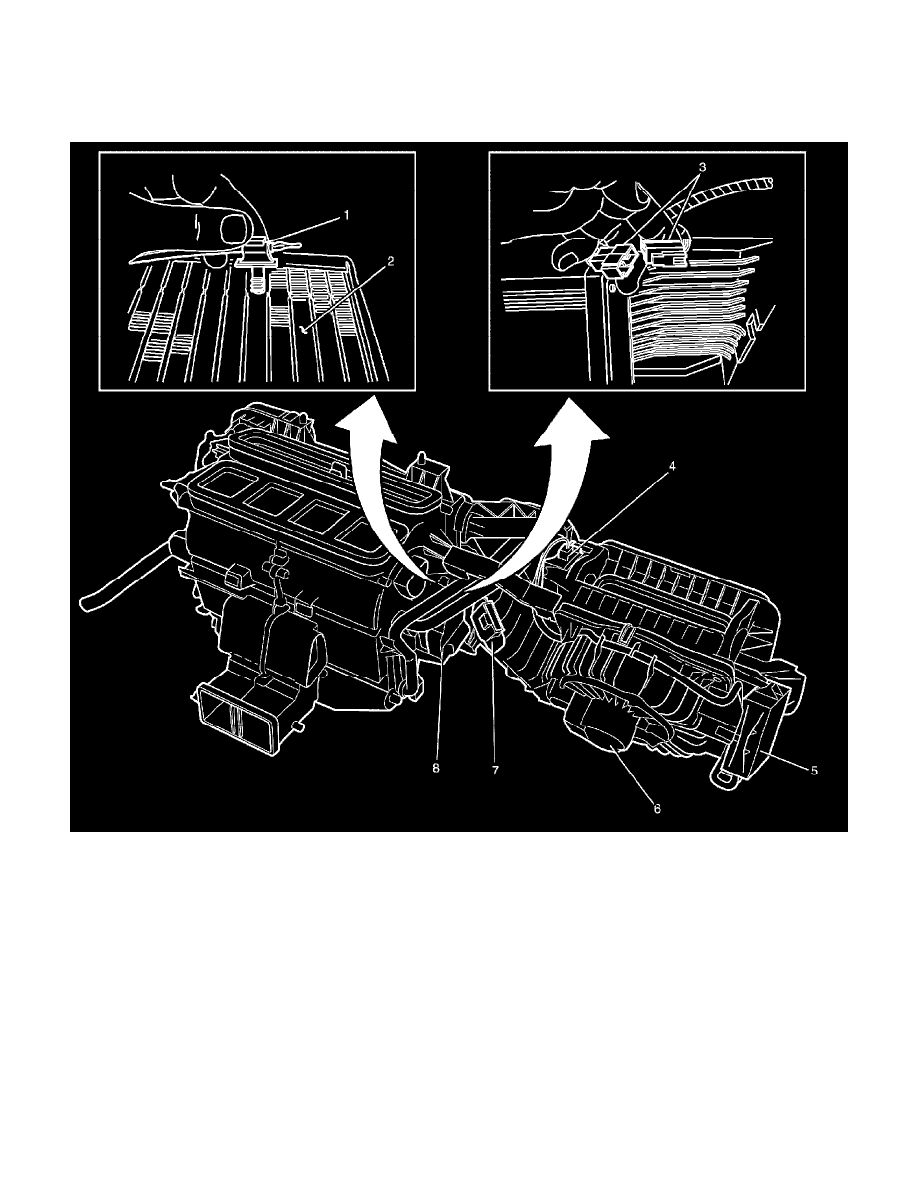

Dual Zone - View From Passenger Side
1 - Evaporator Temperature Sensor
2 - Evaporator Core
3 - Evaporator Temperature Sensor Connector
4 - Recirculation Actuator
5 - HVAC Control Module
6 - Blower Motor
7 - Blower Motor Control Module
8 - Air Temperature Actuator - Right
Dual Zone - I/P Components
