Grand AM L4-121 2.0L (1988)

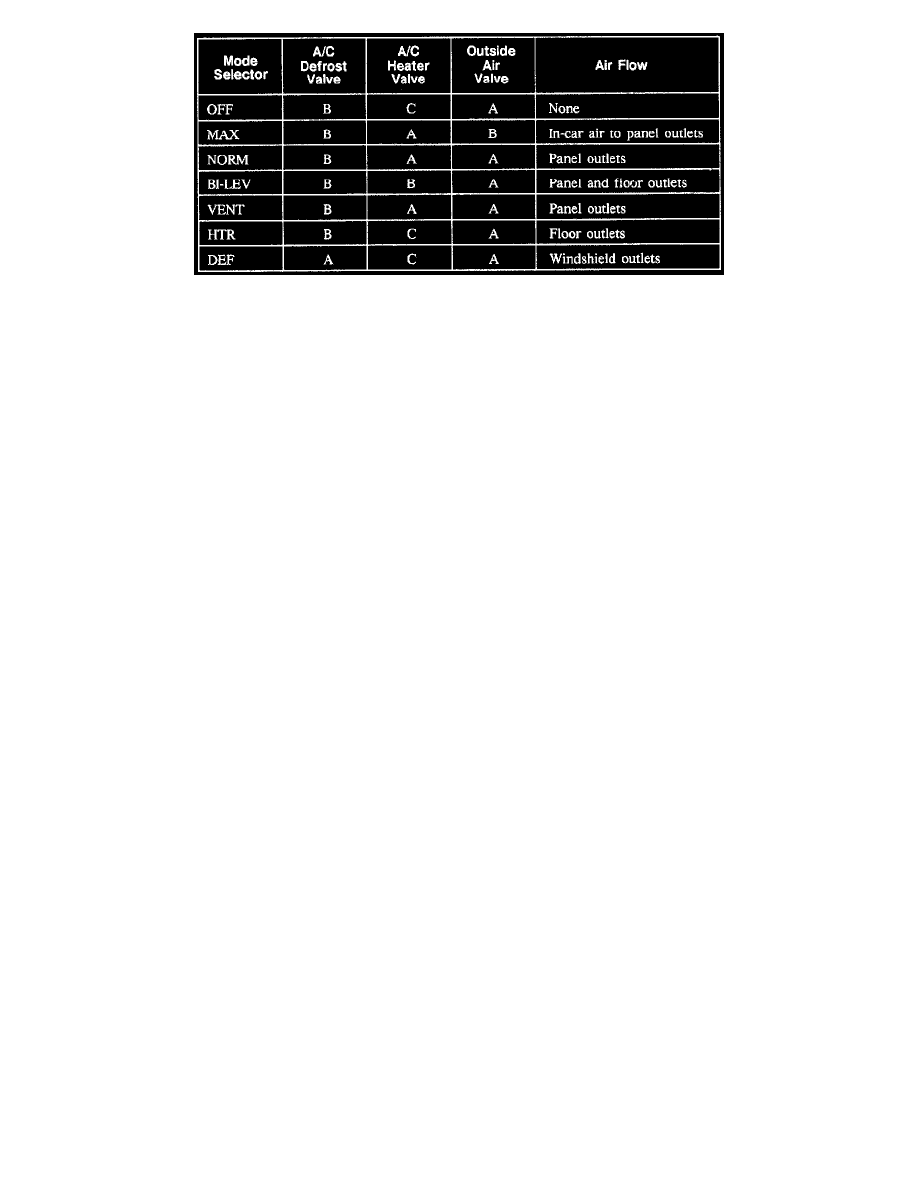

Air Valve Position Chart.
Verify the operation of the air valves using the following chart. Put blower switch in HI to give a strong flow of air.
^
Use the second image (Air Delivery Vacuum Controls) for door positions.
