Pontiac Workshop Service and Repair Manuals > Grand AM L4-121 2.0L (1988) > Heating and Air Conditioning | Blower Motor | Component Information | Diagrams | Diagram Information and Instructions | Page 4730

Blower Motor|Testing and Inspection > < Diagram Information and Instructions|Page 4729

Page 3

background image

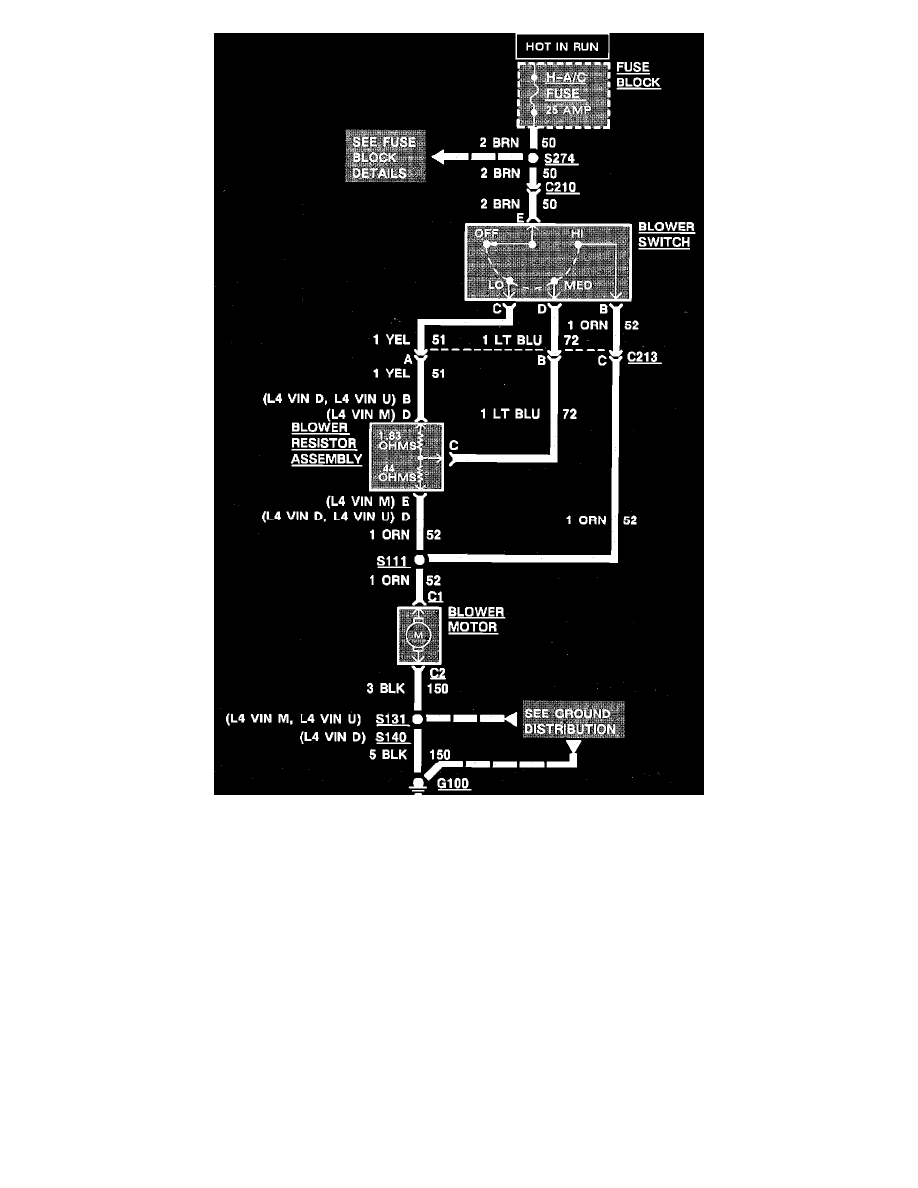

Heater Wiring Circuit

Heating and Air Conditioning
Blower Motor / Component Information
Diagrams / Diagram Information and Instructions
Page 4730
