Grand AM L4-121 2.0L (1988)

Page 1
background image

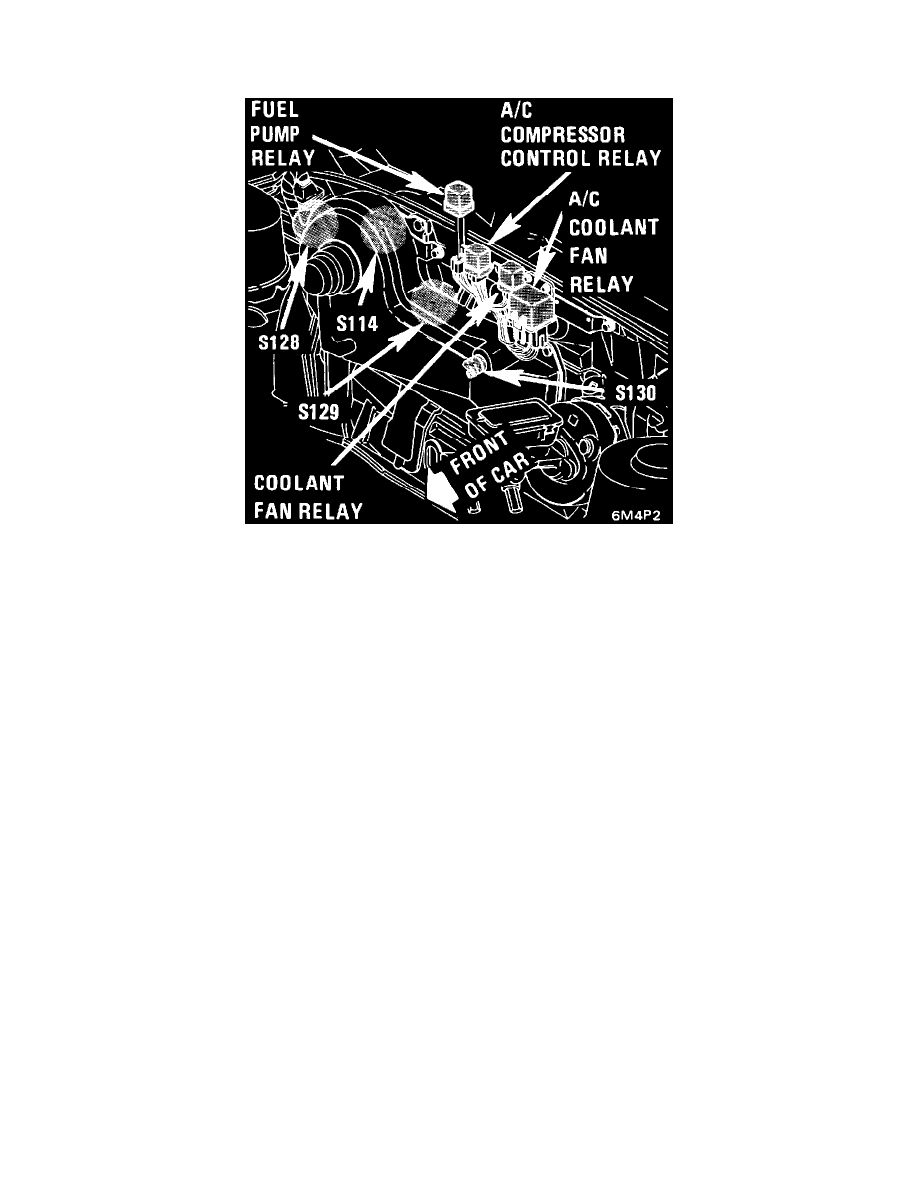

Compressor Clutch Relay: Locations
Compressor Control Relay

A/C Copressor Control Relay

The Compressor Control Relay is located in front of the dash on the relay bracket.
