Wheel Fastener: Specifications

Make

Pontiac

Model

Grand Prix

Engine

V8-5.3L

Year

2007

Section

Wheels and Tires › Wheel Fastener › Specifications

MaintenanceSpecifications · page 1 of 2

Wheel Fastener: Specifications

Align the locating mark of the tire and wheel to the hub.

Important: Tighten the nuts evenly and alternately in order to avoid excessive runout.

Install the wheel nuts using J 39544-KIT.

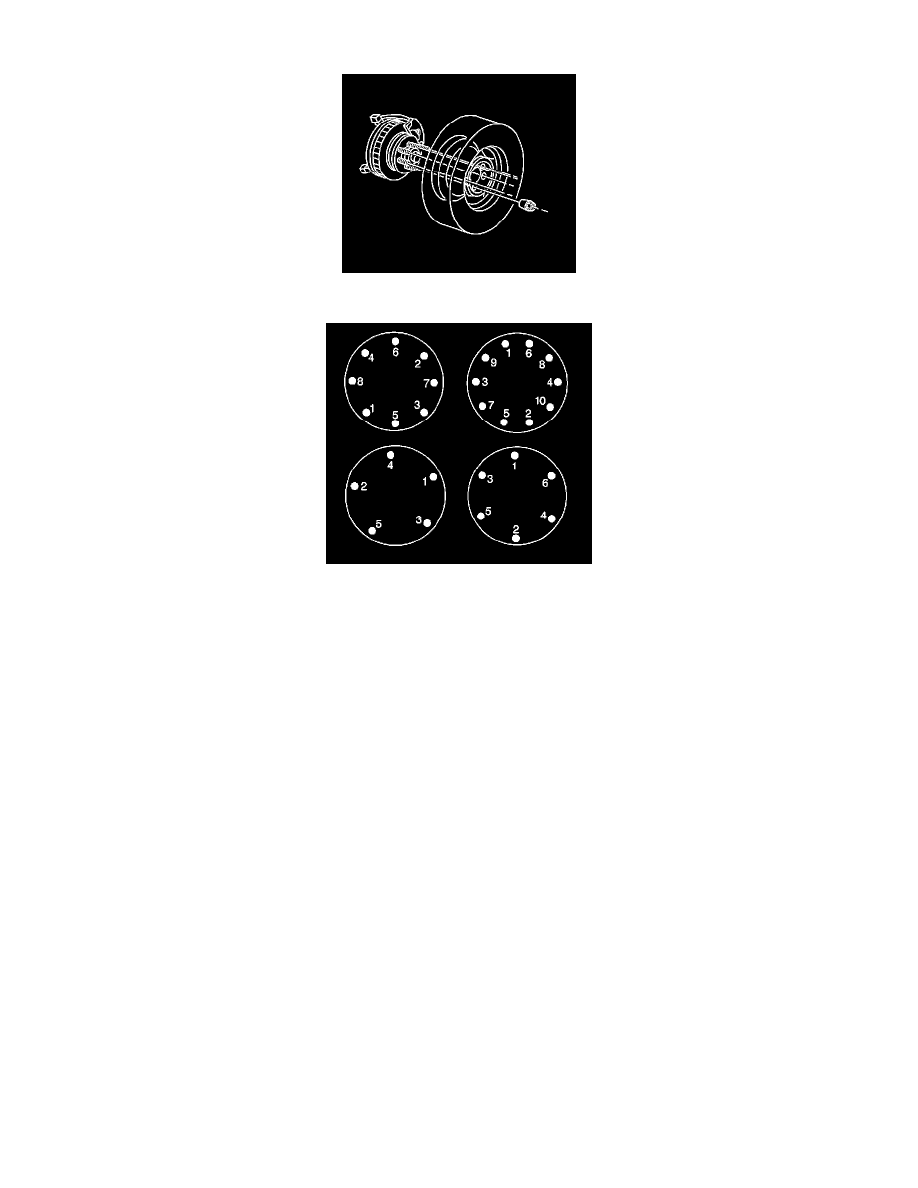

Tighten the nuts in a criss/cross pattern to .............................................................................................................................................  140 N.m (100 lb ft).

Pinch or Ctrl + scroll to zoom. Double-tap to reset.

03 Maintenance

The same page in: Grand Prix V6-3.8L (2007), Grand Prix V6-3.8L (2007), Grand Prix V8-5.3L (2007).
