Multiple Junction Connector: Diagrams
C100 - C205

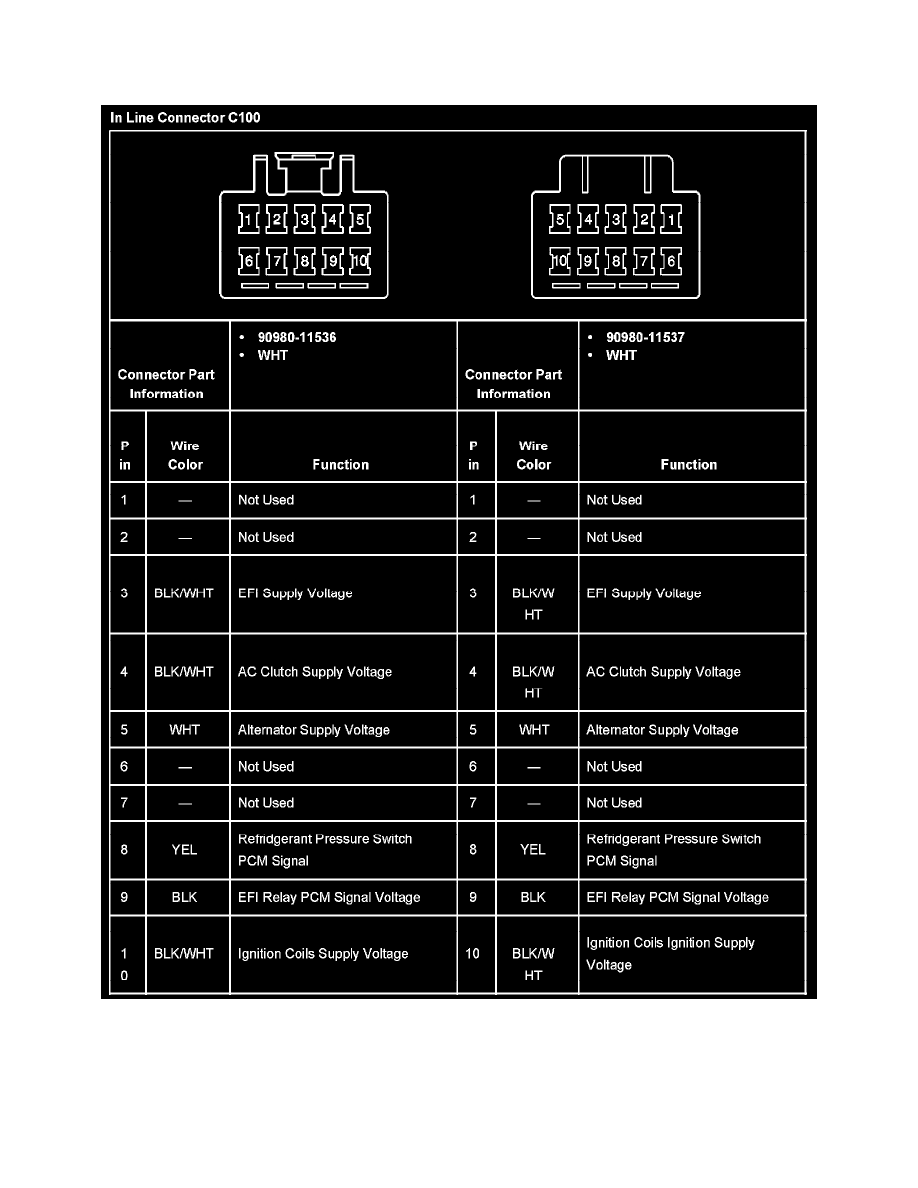

In Line Connector C100

Power and Ground Distribution
Multiple Junction Connector
Component Information
Diagrams
C100 - C205
