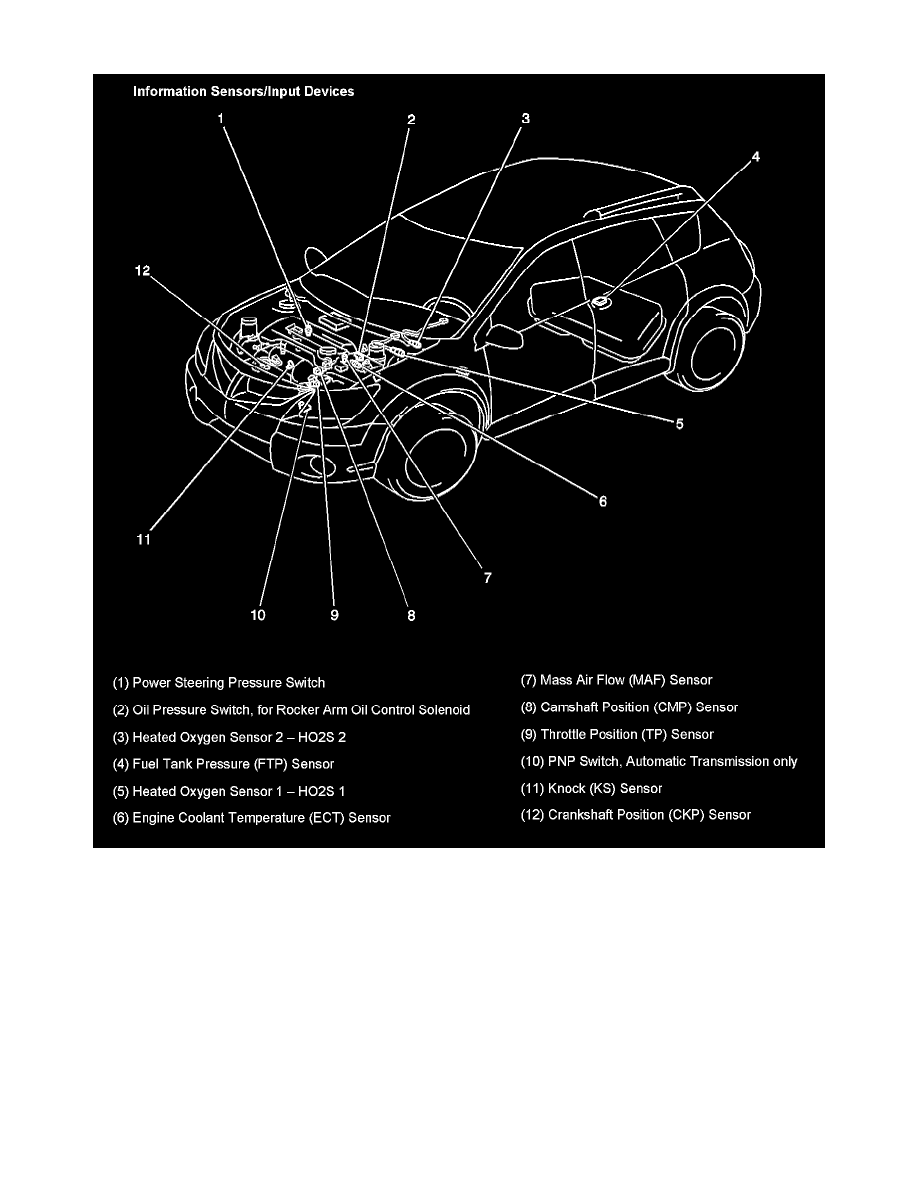

Camshaft Position Sensor Location for Vibe L4-18L VIN L (2003) - Page 2563
Camshaft Position Sensor: Service and Repair
REMOVAL PROCEDURE
1. Remove the four fasteners from the engine cover (1).
2. Remove the engine cover (1) from the engine.
3. Disconnect the CMP electrical connector (1).
4. Remove the two CMP sensor hold-down bolts.
5. Remove the CMP sensor (2) from the cylinder head.
INSTALLATION PROCEDURE
