911 Carrera 2 Cabriolet F6-3600cc 3.6L SOHC (1992)

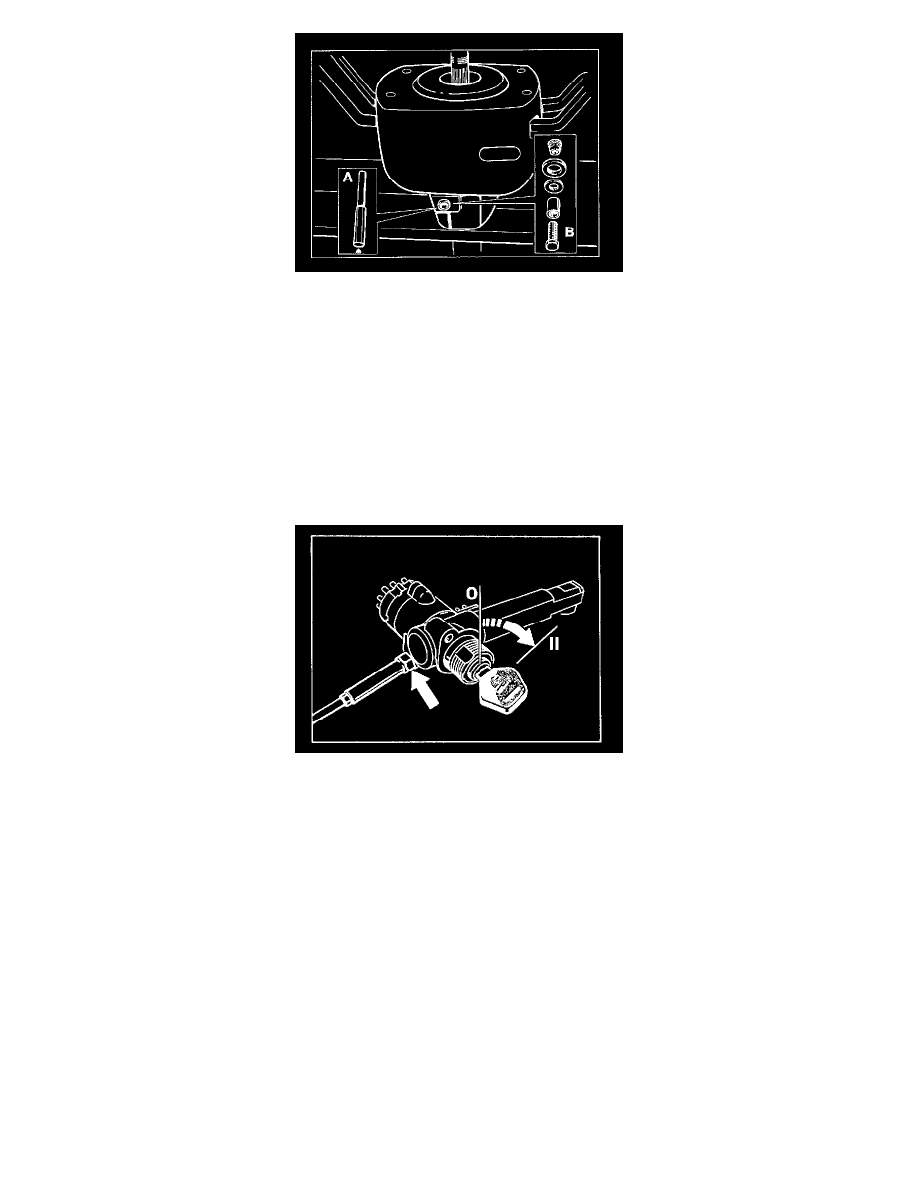

A damaged threaded bushing may be replaced as follows:
Push out threaded bushing with a suitable drift (A).
Pull in new threaded bushing with the aid of suitable washers and a corresponding spacer sleeve (B).
When pulling the bushing in, remember that the threaded bushing protrudes from the steering outer tube. (Inner dia. of washer is larger than outer
dia. of bushing). Center washer correctly before pulling bushing in.
Installation
1. Place steering/ignition lock into vehicle with lock pin disengaged (lock position "II").
2. Turn shear bolts into place but do not shear off yet. Fit steering wheel.
3. Fit connector of ignition/starter switch and buzzer contact.
4. On keylock vehicles, fit bowden cable with steering/ignition lock set to position "II". Then set selctor lever to "P" and turn ignition lock to "0"
afterwards.
Note:
If the steering/ignition lock cannot be turned to "0", the bowden cable must be readjusted.
5. Check operation of steering/ignition lock (operation of lock pin) and operation of keylock. Shear off bolts only if this check is o.k.
