911 Carrera 4 Cabriolet (997) F6-3.6L (2006)
/f6-3.6l/Page-306016.png)

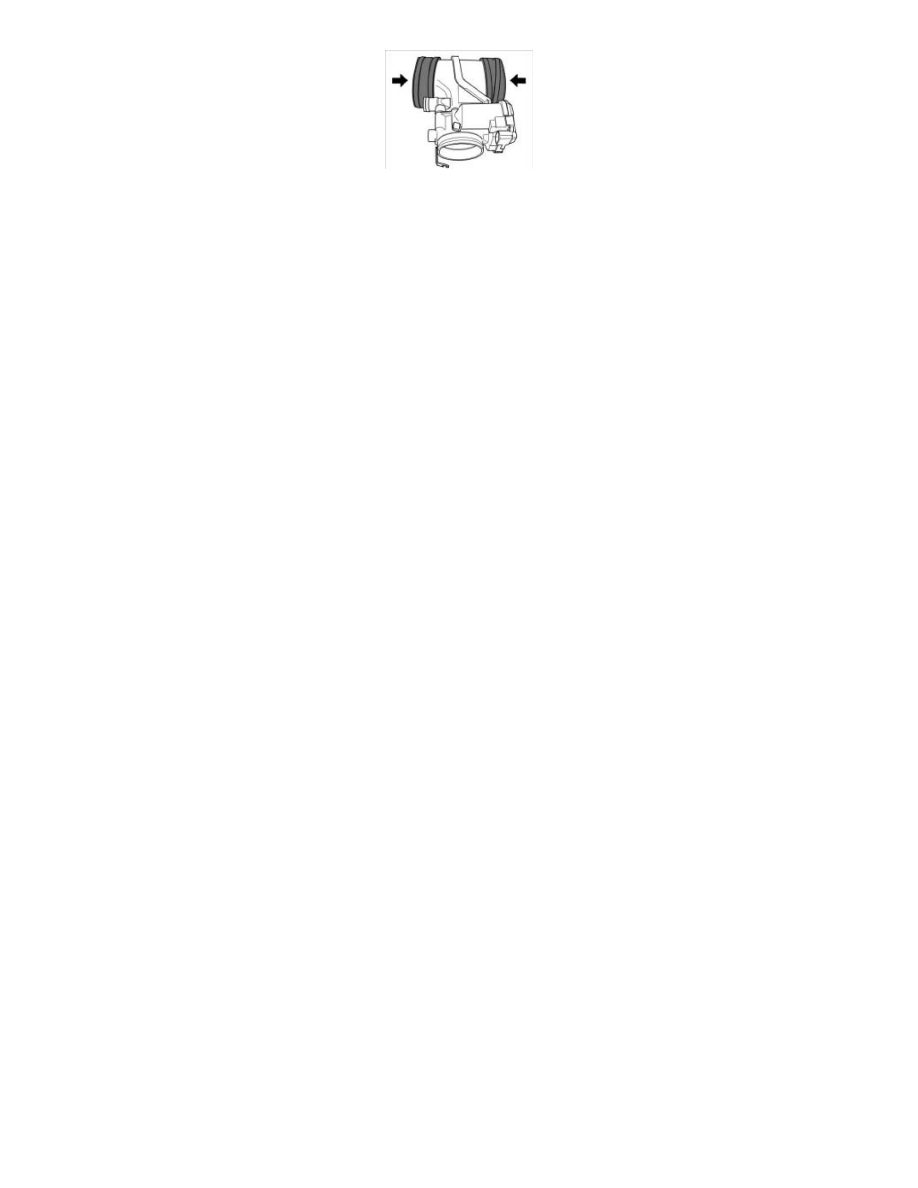

Distributor Pipe
5. Fit distributor pipe together with throttle body. To do this, push four screw-type hose clamps and the rubber sleeves onto the distributor pipe
-arrows-. Guide distributor pipe together with mounted throttle body between the intake distributors. Align and tighten the rubber sleeves
screw-type hose clamps.
6. Fit the crankcase ventilation line, cable plug and hexagon nut. Tightening torque 7.5 ftlb..
Subsequent work
Work subsequent to installing tuning pipe
1. Install air cleaner housing.
2. Connect the battery.
