Oxygen Sensor Relay: Locations

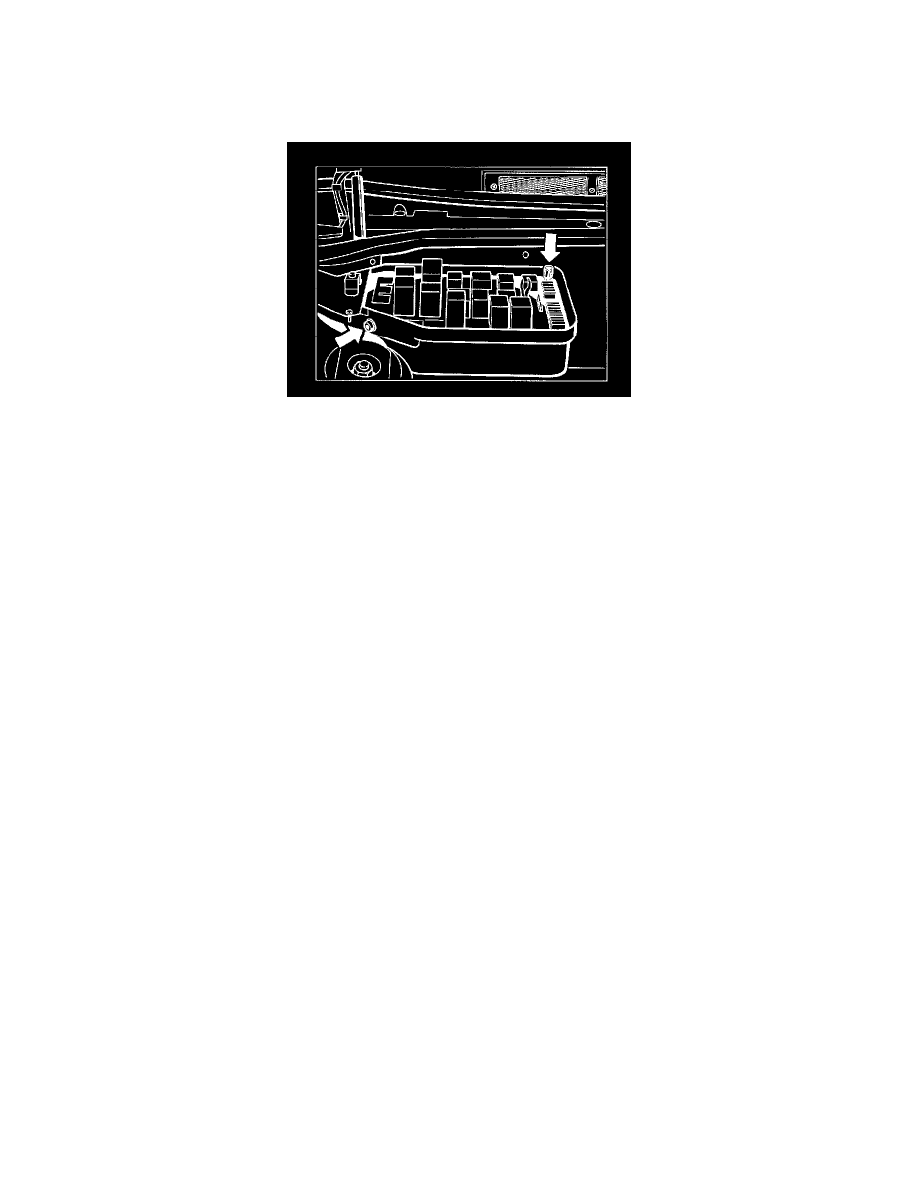

Relays In Central Electric Panel

Located at right-hand side of the engine compartment.
