911 GT2 (996) F6-3.6L Turbo (2003)
Gateway
The gateway is integrated into the PCM2. Together with the MMI, it is a fixed component of each PCM2. It provides a connection to CAN Comfort via
its nodes. Diagnosis and useful data is exchanged with CAN via these nodes.

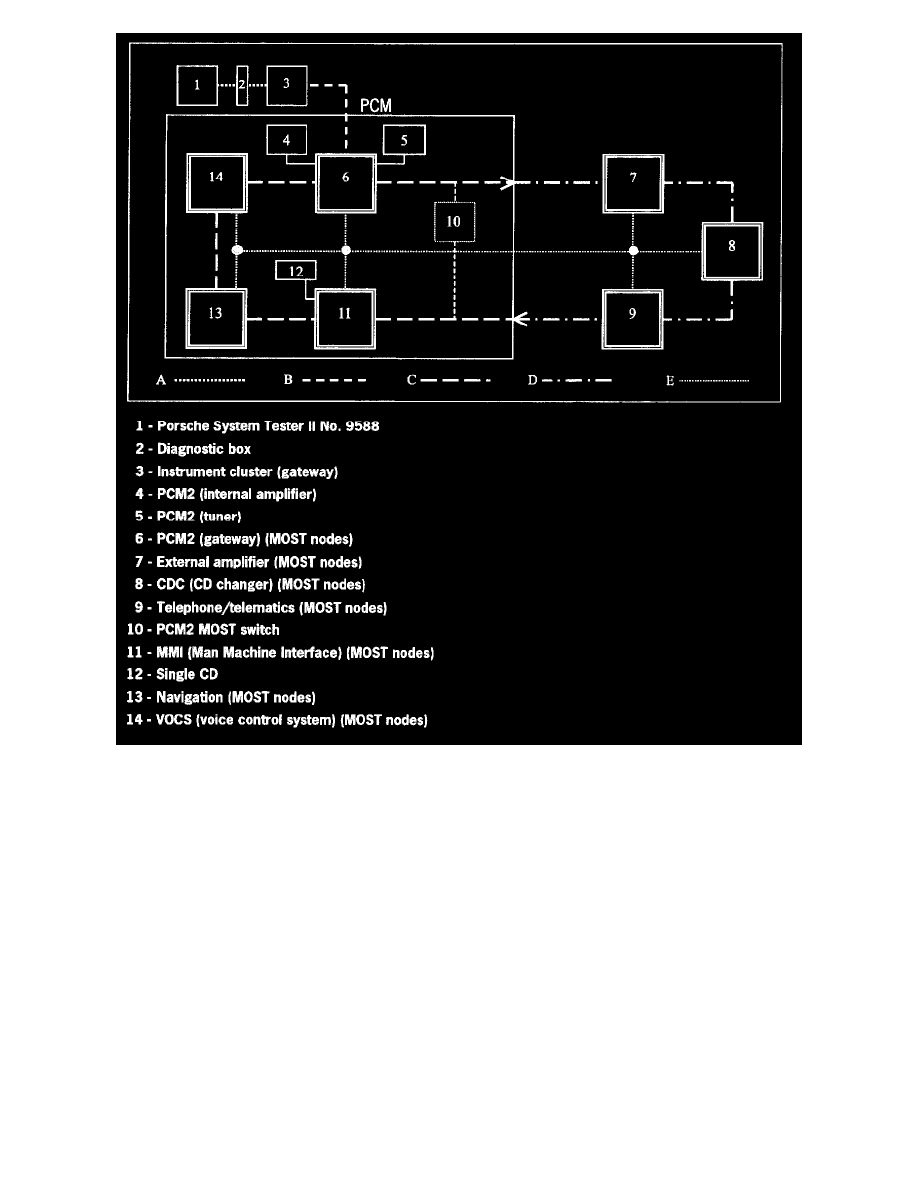

It creates links to the following systems:
-
CAN Comfort
-
Media Oriented Systems Transport (MOST), internal (electrical)
-
Voice control system (VOCS) (optional/insertion)
-
Navigation (optional/rack)
-
Man Machine Interface (MMI)
-
Single CD
-
Media Oriented Systems Transport (MOST), external bus (optical)
-
Amplifier optional (Harman or BOSE)
-
CD changer
-
Telephone/telematics
Internal Amplifier
The tuner is part of the PCM2 (on the mainboard)
Tuner
