911 Targa 4S (997) F6-3.8L (2007)

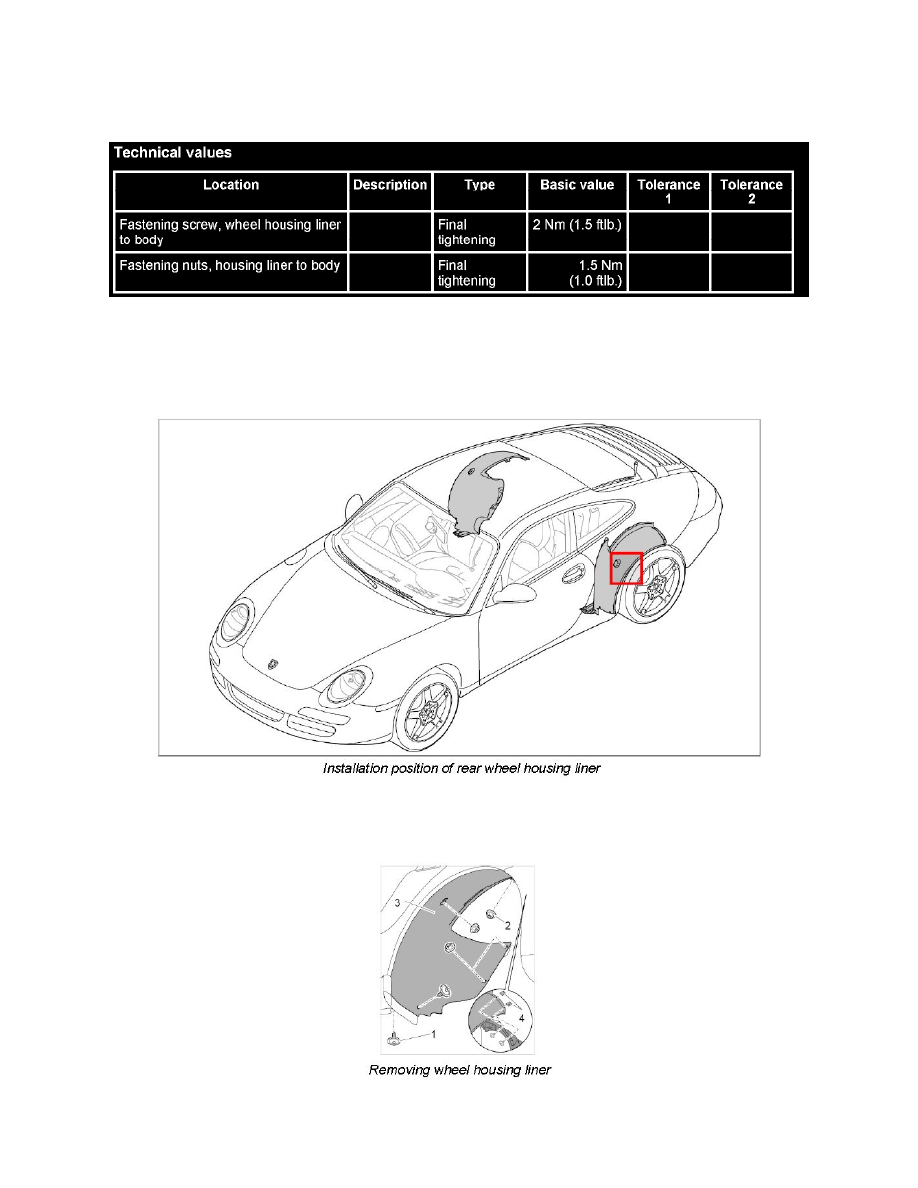

Installing rear wheel housing liner
1. Press fastening nuts -4- into the wheel housing liner -3-.
2. Insert wheel housing liner -3-.
3. Screw in fastening screws -1- and tighten to the specified tightening torque: Final tightening: 2 Nm (1.5 ftlb.).
4. Screw on fastening nuts -2- and tighten to the specified tightening torque: Final tightening: 1.5 Nm (1.0 ftlb.).
Subsequent work
Reworking
Install wheel. Refer to Removing and installing wheel.
