911 Targa 4S (997) F6-3.8L (2007)
/f6-3.8l/Page-383001.png)
Valve Body: Service and Repair
Removing and installing electrohydraulic control unit
Information

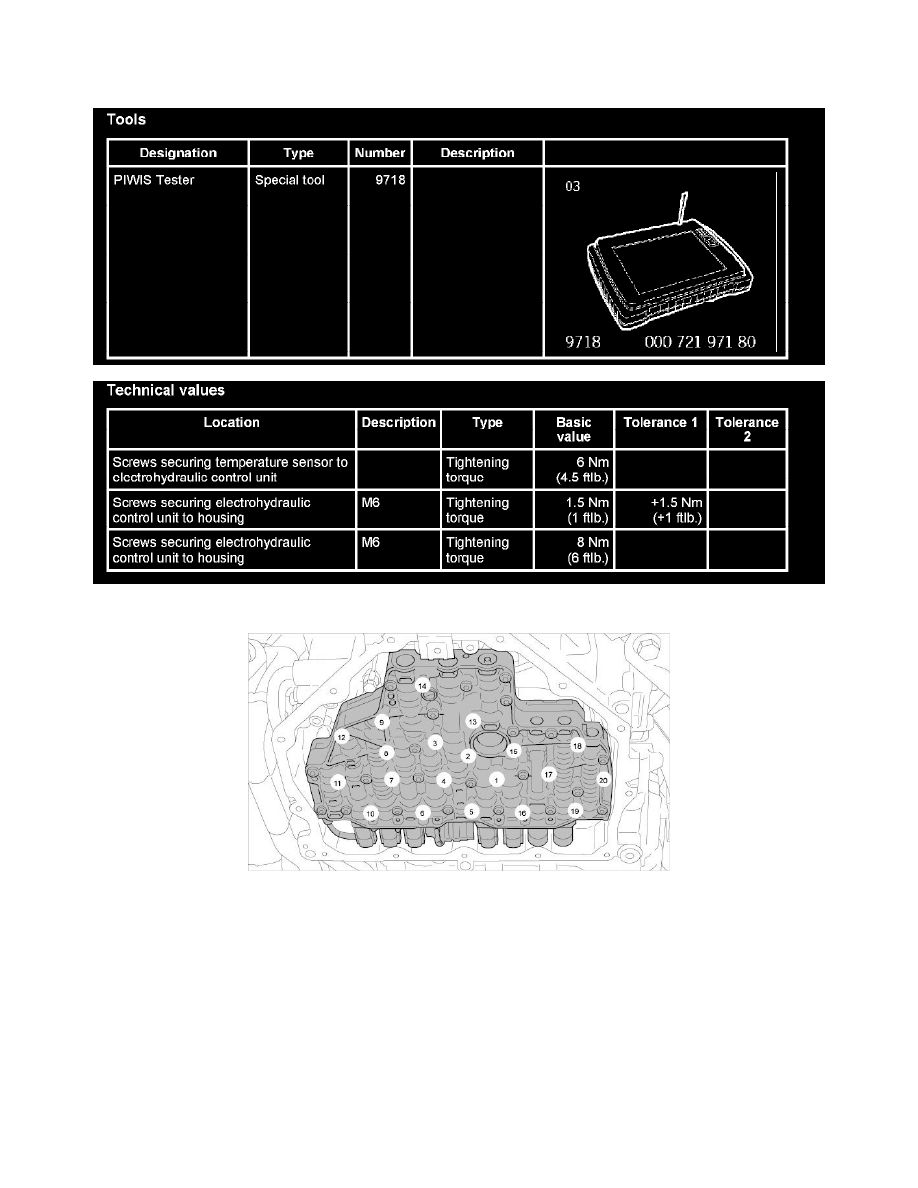

Overview of tightening sequence for hydraulic control unit
Always observe tightening sequence. The screw heads of the Torx screws used to secure the electrohydraulic control unit to the Porsche
Doppelkupplung housing are slightly bigger (Torx T40) than the screws for the flange blocks of the electrohydraulic control unit.
Preliminary work
1. Move selector lever to position P.
2. Raise the vehicle at the prescribed jacking points.
3. Remove rear underbody panelling.
4. Drain ATF.
5. Remove ATF oil pan.
Removing electrohydraulic control unit
