Boxster (987) F6-2.7L (2006)
/f6-2.7l/Page-862003.png)

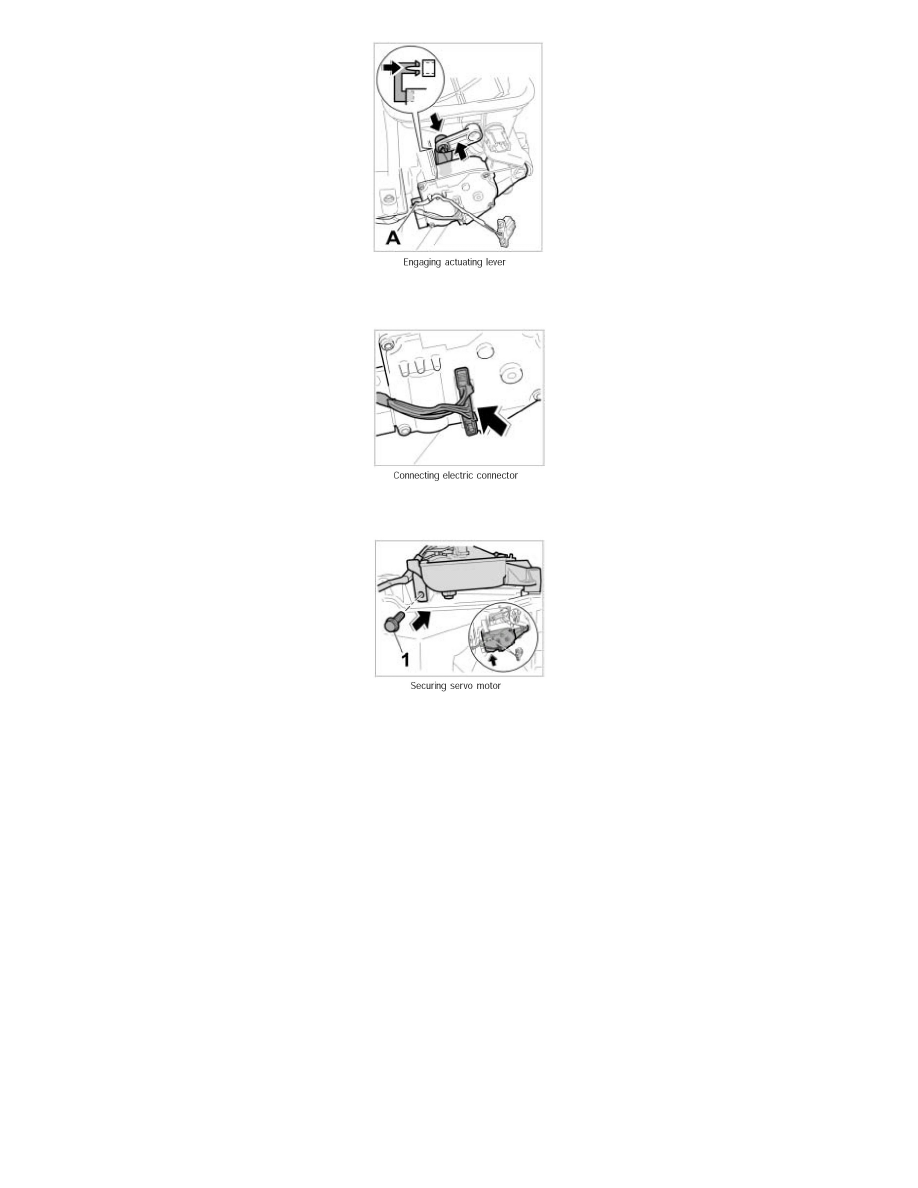

2. Clip the servo motor actuating lever onto the deflection lever of the heater/air-conditioning unit.
3. Lay electric line to the servo motor -A- and connect the electric connector to servo motor until it is felt to engage.
4. Secure servo motor with the fastening screw -1-. Tightening torque: 1.2 Nm (1.0 ftlb.) ±0.5 Nm (0.5 ftlb.)
5. Switch on ignition and check function of servo motor by adjusting the air conditioning control.
Subsequent work
Subsequent work for fresh/recirc. air servo motor
1. Install heating/air-conditioning unit.
