Heated Glass Element: Testing and Inspection

Checking Function Of Heating For Rear Window

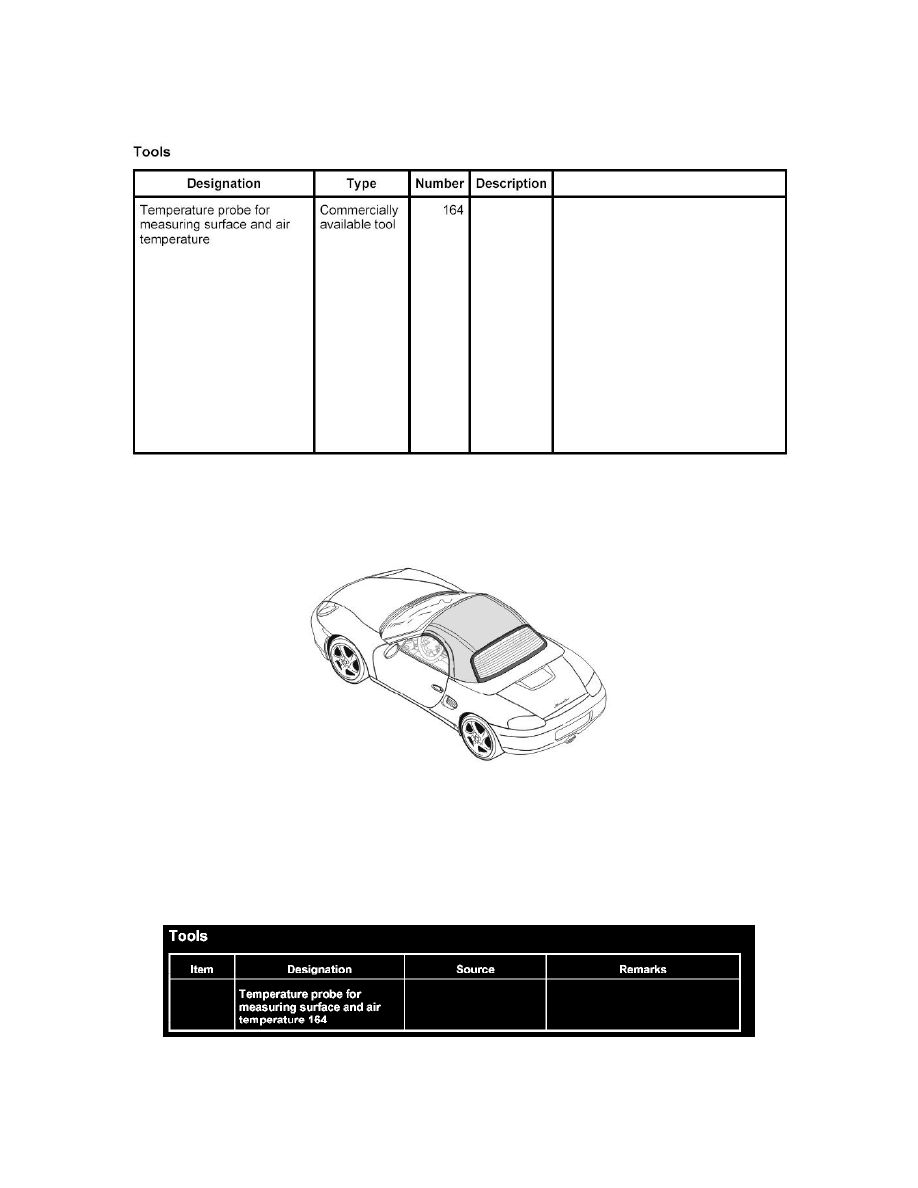

Tools

INFORMATION:  The function of the heating for the rear window (hardtop) can be checked with a temperature probe with digital display. The
indicator light in the rocker switch also lights up if a fault is present and the heating wires in the rear window do not warm up.

Tools

Checking with the temperature probe

1. Use the tip of the sensor to measure from the outside on the centre of the rear window.
2. The tip of the sensor must be positioned exactly on a heating wire on the rear window.
