Cayenne Turbo (9PA) V8-4.8L Turbo (2008)
/v8-4.8l_turbo/Page-61001.png)

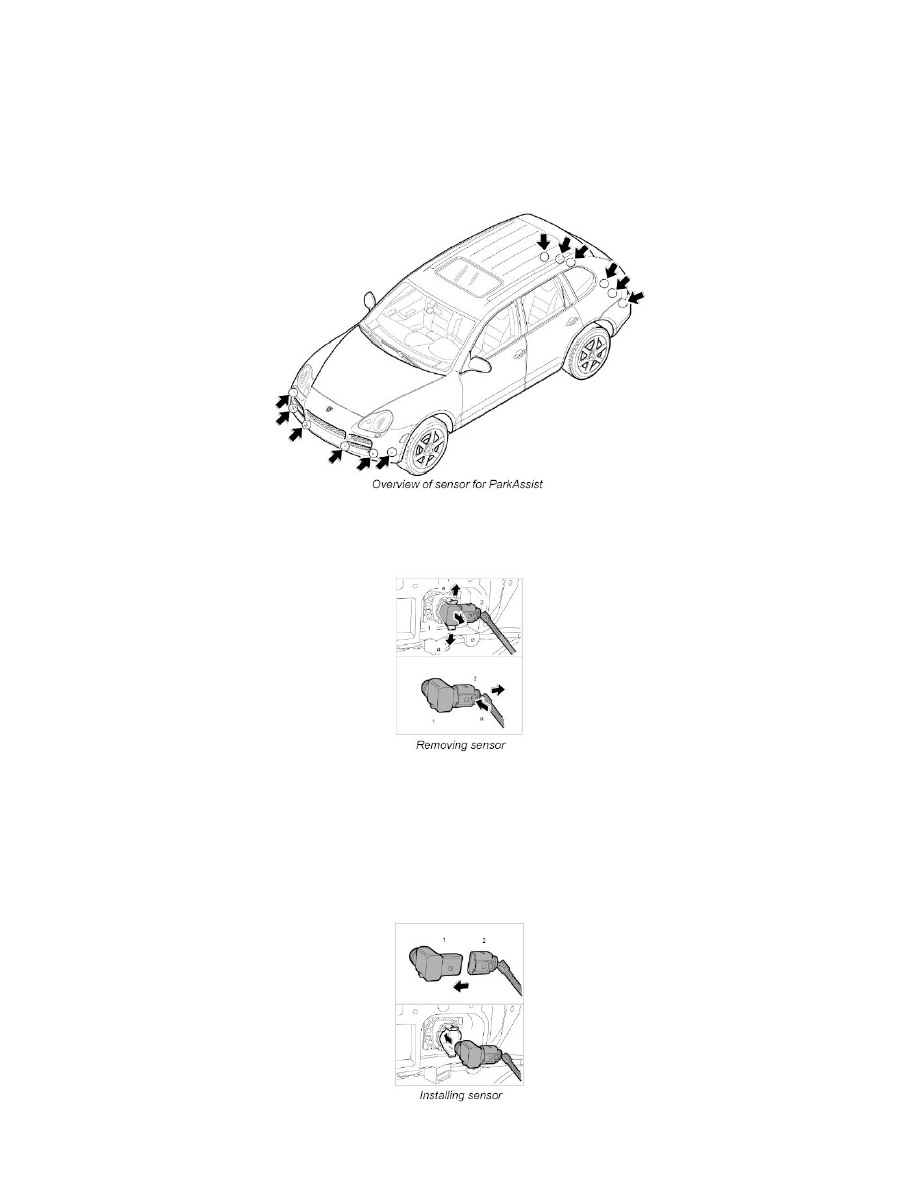

Parking Assist Distance Sensor: Service and Repair
Removing And Installing Sensor For ParkAssist
Preliminary work
Remove the front or rear apron as required.
Removing sensor for ParkAssist
INFORMATION:
If one or more sensors must be replaced or repainted:
-
Follow the painting specifications.
1. Pull apart retaining tabs -arrows A- and remove sensor -1-.
2. Press detent -arrow a- for connector -2- and pull connector off.
Installing sensor for ParkAssist
INFORMATION:
If one or more sensors must be replaced or repainted:
-
Follow the painting specifications.
1. Push the connector -2- onto the sensor -1- until it engages securely.
