Cayman S (987) F6-3.4L (2008)
INFORMATION: Pay attention to correct assembly (water drain).

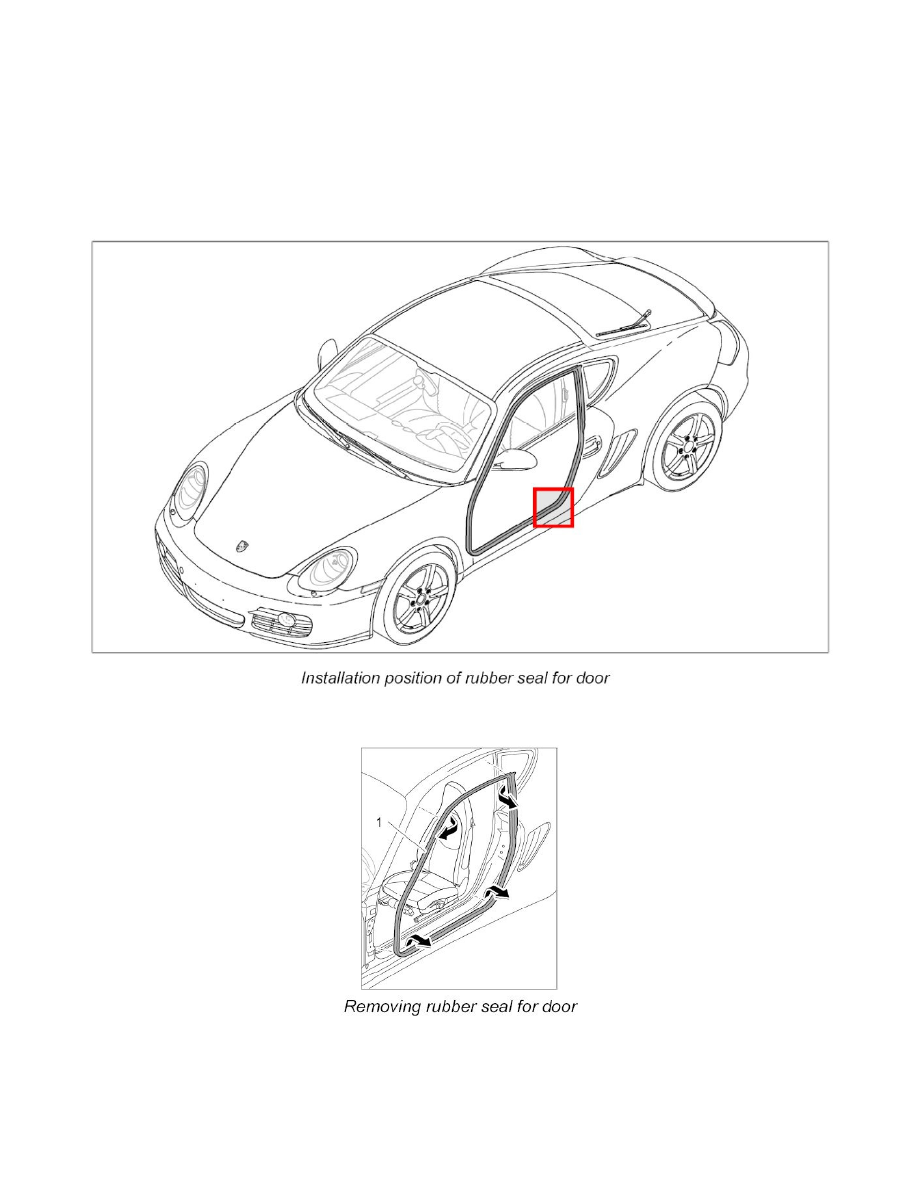

1. Position the rubber seal into the door channel edging and press it on -arrow-.
2. Position the rubber seal on the top edge of the door and push it on -arrow-.
3. Clip in the rubber seal along the door contour.
4. Align the rubber seal -1- until the locking lug engages securely -arrow-.
Subsequent work
1. Install rear-view mirror. Refer to Removing and installing rear-view mirror.
2. Install door sub-frame. Refer to Removing and installing door sub-frame.
