Cayman S (987) F6-3.4L (2008)
/f6-3.4l/Page-331001.png)
Control Module: Service and Repair
WM 373019 Removing and installing the Tiptronic control module (also referred to generally as control unit below)
Preliminary work
Preliminary work for Tiptronic control module (also referred to generally as control unit below)
Remove trim panel for rear luggage compartment at the right.
If the control unit must be replaced, first read out the values from the control unit before removal.
Removing Tiptronic control unit
Removing Tiptronic control unit
Warning
Sudden voltage interruption of the power supply to the control module.
^
Destruction of the control module.
-> During programming, it is essential to guarantee the power supply for the Porsche System tester. It is essential to connect a battery charger with a
current rating of at least 40 A to the vehicle battery.
-> Prior to disconnecting the control module, switch off the ignition and remove the ignition key.

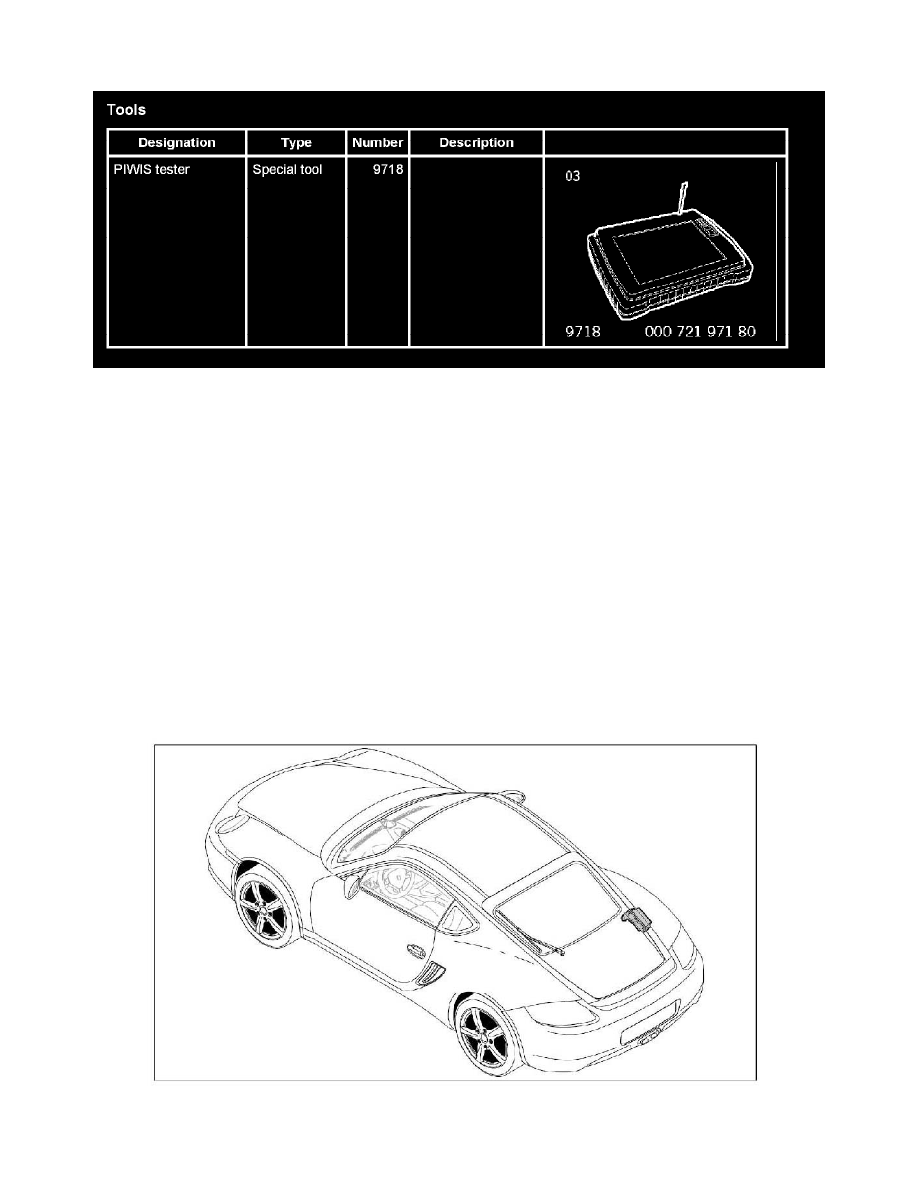

Installation position
